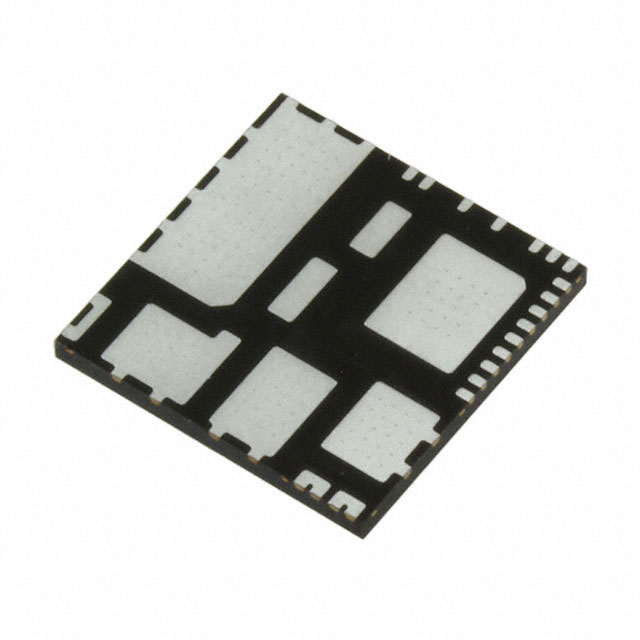

- Product Model IRSM836-084MA
- Brand IR (Infineon Technologies)
- RoHS Yes
- Description IC HALF BRIDGE DRIVER 7A 36QFN
- Classification Full Half-Bridge (H Bridge) Drivers
-
PDF
Technical Details
- Features Bootstrap Circuit
- Package / Case 36-PowerVQFN
- Mounting Type Surface Mount
- Interface Logic
- Operating Temperature -40°C ~ 150°C (TJ)
- Output Configuration Half Bridge (3)
- Voltage - Supply 10V ~ 20V
- Rds On (Typ) 310mOhm
- Applications AC Motors
- Current - Output / Channel 7A
- Current - Peak Output 27A
- Technology UMOS
- Voltage - Load 200V (Max)
- Supplier Device Package 36-PQFN (12x12)
- Fault Protection UVLO
- Load Type Inductive
