- Product Model FDMF3170
- Brand Sanyo Semiconductor/onsemi
- RoHS Yes
- Description IC HALF BRIDGE DRIVER 55A 39QFN
- Classification Full Half-Bridge (H Bridge) Drivers
-
PDF
Technical Details

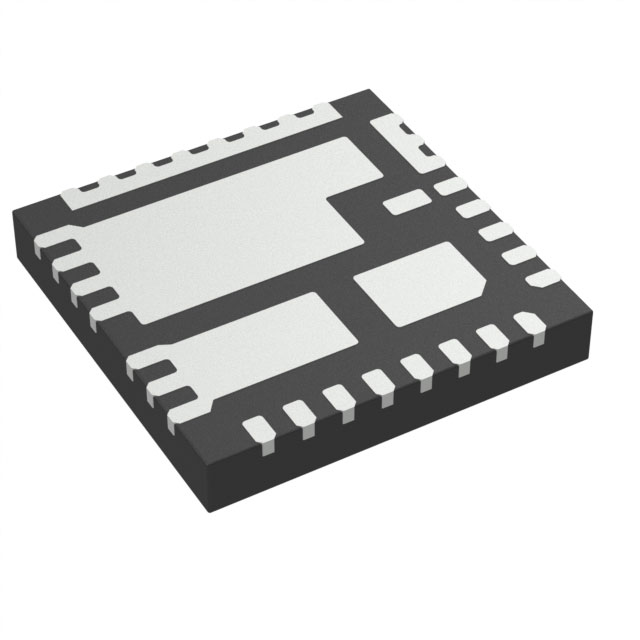

- Package / Case 39-PowerVFQFN
- Mounting Type Surface Mount
- Interface Logic, PWM
- Operating Temperature -40°C ~ 125°C (TJ)
- Output Configuration Half Bridge (2)
- Voltage - Supply 4.5V ~ 5.5V
- Applications General Purpose
- Current - Output / Channel 55A
- Current - Peak Output 70A
- Technology Power MOSFET
- Voltage - Load 4.5V ~ 16V
- Supplier Device Package 39-PQFN (5x6)
- Fault Protection Current Limiting, Over Temperature, UVLO
- Load Type Inductive
