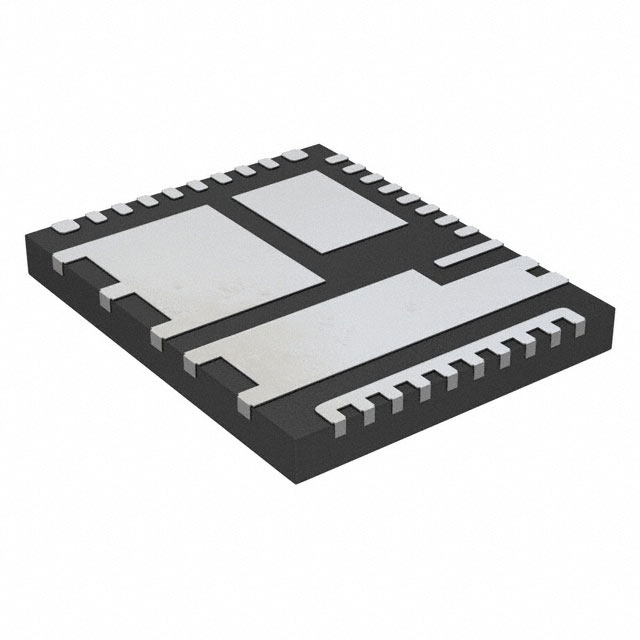

- Product Model IRSM005-301MH
- Brand IR (Infineon Technologies)
- RoHS Yes
- Description IC HALF BRIDGE DRIVER 30A 27QFN
- Classification Full Half-Bridge (H Bridge) Drivers
-
PDF
Technical Details
- Features Bootstrap Circuit
- Package / Case 27-PowerVQFN
- Mounting Type Surface Mount
- Interface Logic
- Operating Temperature 150°C (TJ)
- Output Configuration Half Bridge
- Voltage - Supply 10V ~ 20V
- Rds On (Typ) 16mOhm
- Applications AC Motors, DC Motors, DC-DC Converters, General Purpose
- Current - Output / Channel 30A
- Technology Power MOSFET
- Voltage - Load 100V (Max)
- Supplier Device Package 27-PQFN (7x8)
- Fault Protection UVLO
- Load Type Inductive, Capacitive
