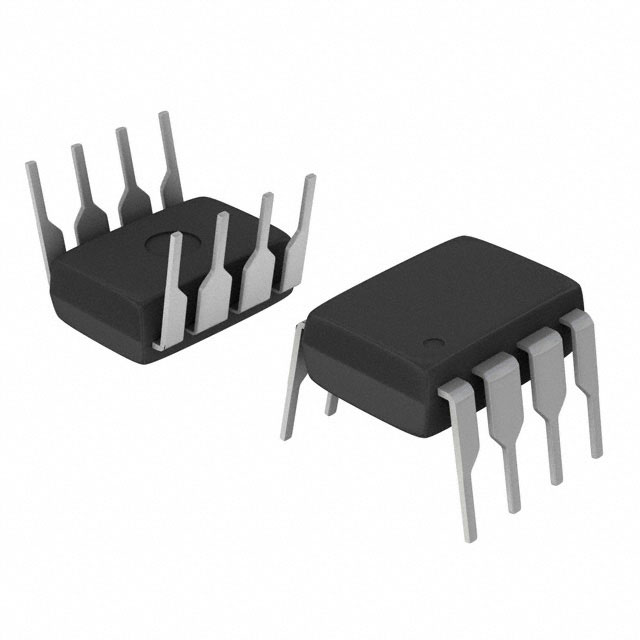

- Product Model UCC27322P
- Brand Texas Instruments
- RoHS Yes
- Description IC GATE DRVR LOW-SIDE 8DIP
- Classification Gate Drivers
-
PDF
Technical Details
- Package / Case 8-DIP (0.300", 7.62mm)
- Mounting Type Through Hole
- Operating Temperature -40°C ~ 105°C (TA)
- Voltage - Supply 4V ~ 15V
- Input Type Non-Inverting
- Supplier Device Package 8-PDIP
- Rise / Fall Time (Typ) 20ns, 20ns
- Channel Type Single
- Driven Configuration Low-Side
- Number of Drivers 1
- Gate Type N-Channel, P-Channel MOSFET
- Logic Voltage - VIL, VIH 1.1V, 2.7V
- Current - Peak Output (Source, Sink) 9A, 9A
- DigiKey Programmable Not Verified
