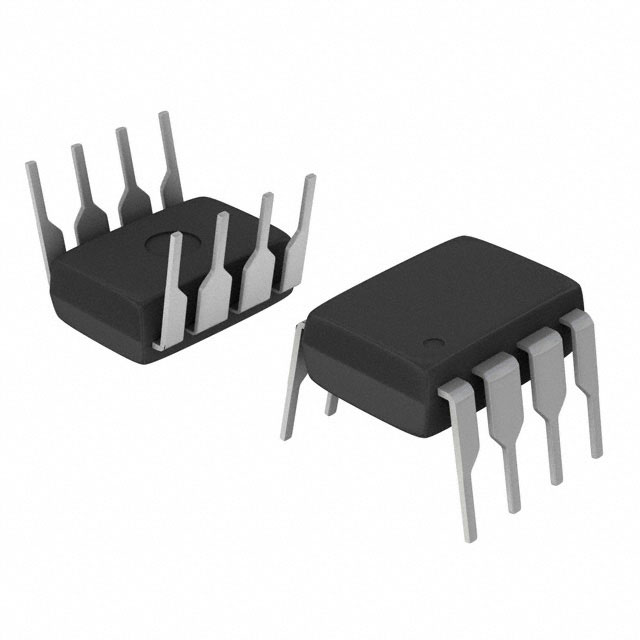

- Product Model UCC27423P
- Brand Texas Instruments
- RoHS Yes
- Description IC GATE DRVR LOW-SIDE 8DIP
- Classification Gate Drivers
-
PDF
Technical Details
- Package / Case 8-DIP (0.300", 7.62mm)
- Mounting Type Through Hole
- Operating Temperature -40°C ~ 125°C (TA)
- Voltage - Supply 4V ~ 15V
- Input Type Inverting
- Supplier Device Package 8-PDIP
- Rise / Fall Time (Typ) 20ns, 15ns
- Channel Type Independent
- Driven Configuration Low-Side
- Number of Drivers 2
- Gate Type N-Channel, P-Channel MOSFET
- Logic Voltage - VIL, VIH 1V, 2V
- Current - Peak Output (Source, Sink) 4A, 4A
- DigiKey Programmable Not Verified
Related Products
IC GATE DRVR LOW-SIDE 8DIP
Inventory: 0
BUFFER/INVERTER BASED MOSFET DRI
Inventory: 474
IC GATE DRVR LOW-SIDE 8SOIC
Inventory: 9655
IC GATE DRVR LOW-SIDE 8DIP
Inventory: 1806

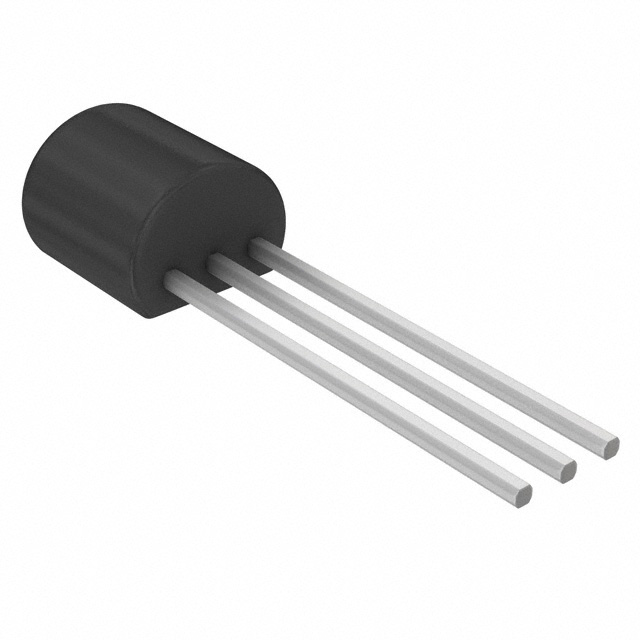

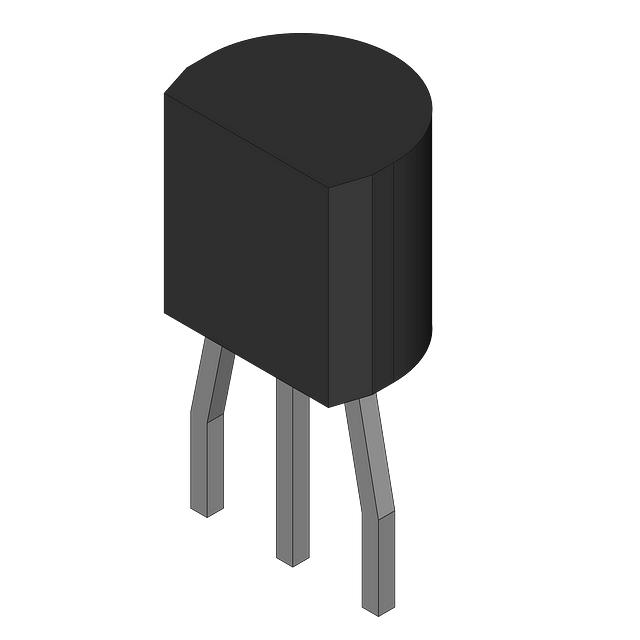

IC SUPERVISOR 1 CHANNEL TO92-3
