- Product Model VN5770AKPTR-E
- Brand STMicroelectronics
- RoHS Yes
- Description IC HALF BRIDGE DRIVER 8.5A 28SO
- Classification Full Half-Bridge (H Bridge) Drivers
Technical Details

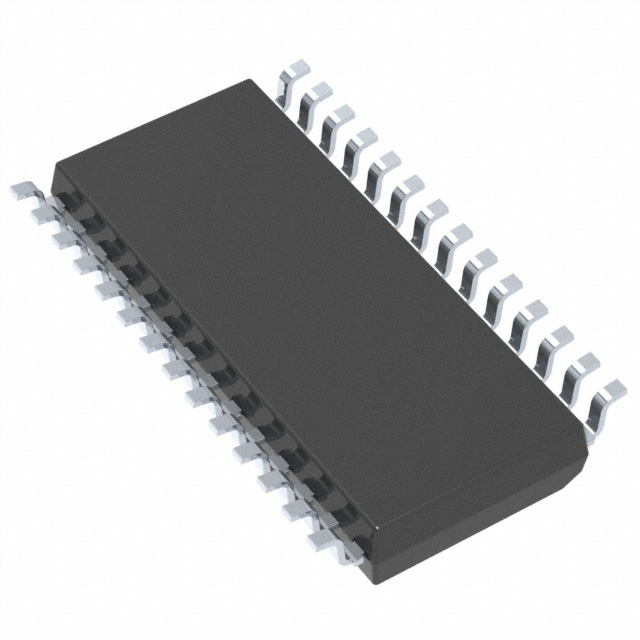

- Package / Case 28-SOIC (0.295", 7.50mm Width)
- Mounting Type Surface Mount
- Interface Logic
- Operating Temperature -40°C ~ 150°C (TJ)
- Output Configuration Half Bridge (2)
- Voltage - Supply 4.5V ~ 36V
- Rds On (Typ) 160mOhm
- Applications DC Motors, General Purpose, Relays
- Current - Output / Channel 8.5A
- Technology Power MOSFET
- Voltage - Load 41V (Max)
- Supplier Device Package 28-SO
- Fault Protection Current Limiting, ESD, Over Temperature, Over Voltage, Short Circuit, UVLO
- Load Type Inductive, Capacitive, Resistive
