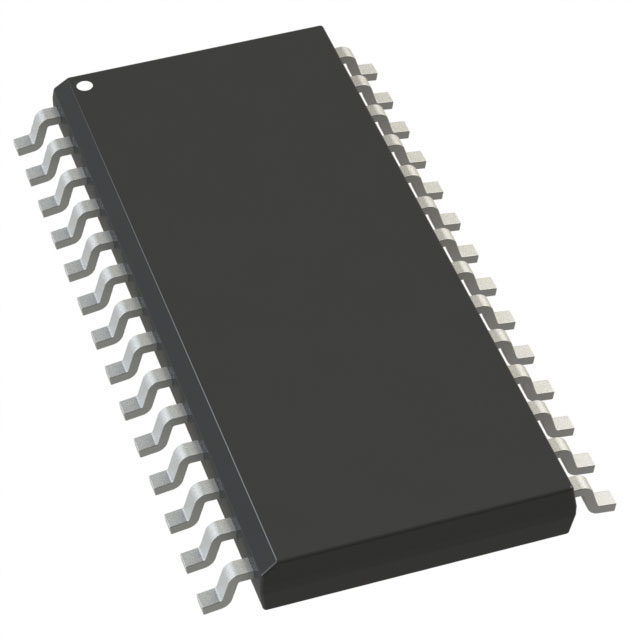

- Product Model DRV8952DDWR
- Brand Texas Instruments
- RoHS No
- Description 50-V SINGLE/DUAL H-BRIDGE OR QUA
- Classification Full Half-Bridge (H Bridge) Drivers
-
PDF
Technical Details
- Features Auto Restart, Charge Pump, Status Flag
- Package / Case 44-PowerTSSOP (0.244", 6.20mm Width)
- Mounting Type Surface Mount
- Interface PWM
- Operating Temperature -40°C ~ 125°C (TA)
- Output Configuration Half Bridge (4)
- Voltage - Supply 4.5V ~ 55V
- Rds On (Typ) 58mOhm LS, 54mOhm HS
- Applications DC Motors, Solenoids
- Current - Output / Channel 5A
- Current - Peak Output 7.6A
- Technology NMOS
- Voltage - Load 4.5V ~ 55V
- Supplier Device Package 44-HTSSOP
- Fault Protection Current Limiting, ESD, Over Temperature, UVLO
- Load Type Inductive, Resistive
