Technical Details

• Features Status Flag

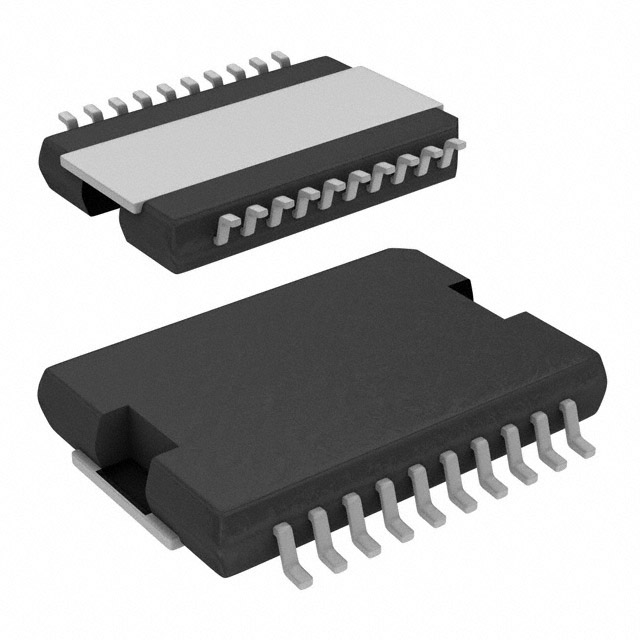

• Package / Case 20-SOIC (0.433", 11.00mm Width) Exposed Pad
• Mounting Type Surface Mount
• Interface Logic
• Operating Temperature -40°C ~ 150°C (TJ)
• Output Configuration Half Bridge (2)
• Voltage - Supply 5V ~ 28V
• Rds On (Typ) 150mOhm
• Applications DC Motors, General Purpose, Solenoids
• Current - Output / Channel 5A
• Technology Bi-CMOS
• Voltage - Load 5V ~ 28V
• Supplier Device Package 20-HSOP
• Fault Protection Current Limiting, Over Temperature, Over Voltage, Short Circuit, UVLO
• Load Type Inductive
