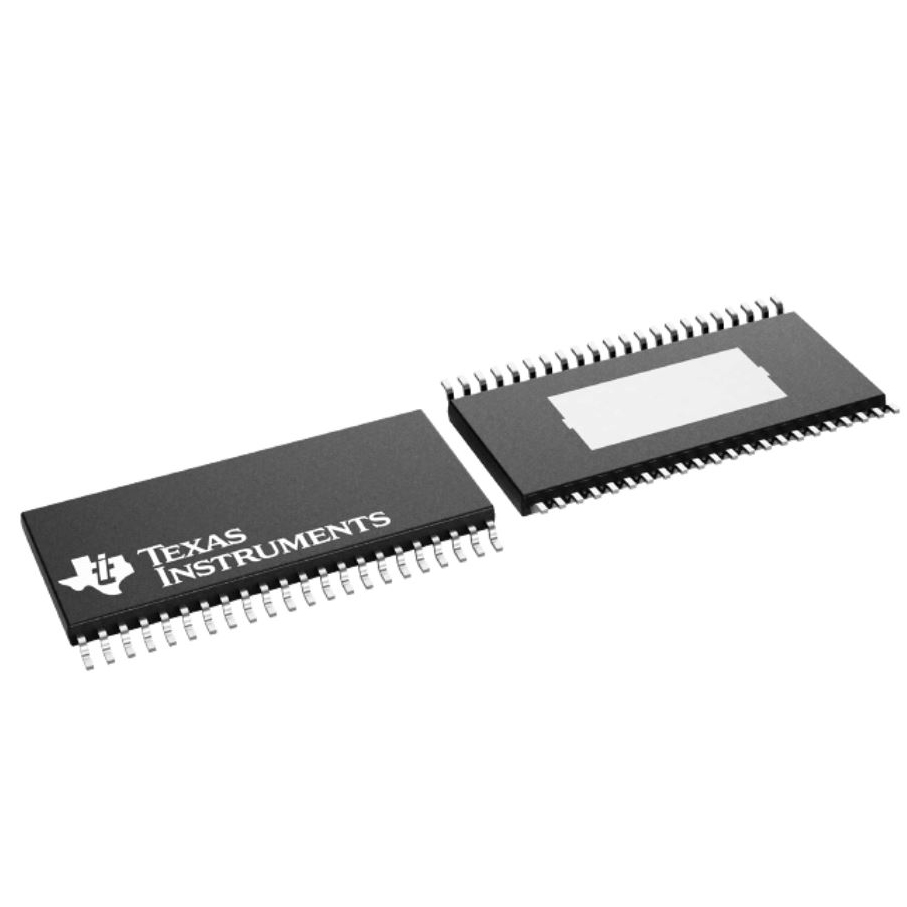

- Product Model DRV8452DDWR
- Brand Texas Instruments
- RoHS Yes
- Description 48-V DUAL H-BRIDGE STEPPER MOTOR
- Classification Motor Drivers, Controllers
-
PDF
Technical Details
- Package / Case 44-PowerTSSOP (0.244", 6.20mm Width)
- Mounting Type Surface Mount
- Function Driver - Fully Integrated, Control and Power Stage
- Current - Output 5A
- Interface SPI, Step/Direction
- Operating Temperature -40°C ~ 125°C (TA)
- Output Configuration Half Bridge (4)
- Voltage - Supply 3.05V ~ 5.5V
- Applications General Purpose
- Technology Power MOSFET
- Voltage - Load 4.5V ~ 48V
- Supplier Device Package 44-HTSSOP
- Motor Type - Stepper Bipolar
- Step Resolution 1 ~ 1/256
