- Product Model PI5USB2546AZHEX
- Brand Zetex Semiconductors (Diodes Inc.)
- RoHS Yes
- Description IC PWR SWITCH N-CHAN 1:1 16TQFN
- Classification Power Distribution Switches, Load Drivers
-
PDF
Inventory:20894
Technical Details
- Features Status Flag

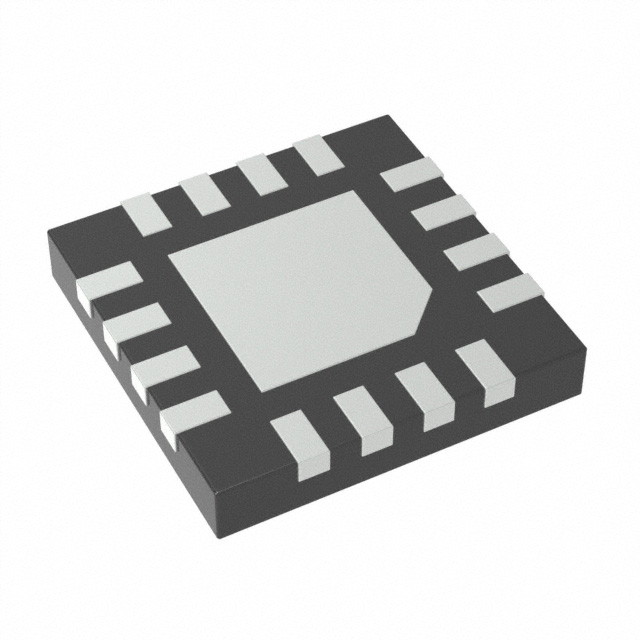

- Package / Case 16-WFQFN Exposed Pad
- Output Type N-Channel
- Mounting Type Surface Mount
- Number of Outputs 1
- Interface On/Off
- Switch Type USB Switch
- Operating Temperature -40°C ~ 85°C (TA)
- Output Configuration High Side
- Rds On (Typ) 73mOhm
- Input Type Non-Inverting
- Voltage - Load 4.5V ~ 5.5V
- Voltage - Supply (Vcc/Vdd) Not Required
- Current - Output (Max) 2.5A
- Ratio - Input:Output 1:1
- Supplier Device Package 16-TQFN (3x3)
- Fault Protection Current Limiting (Adjustable), Over Temperature, UVLO
