- Product Model BTS70081EPPXUMA1
- Brand IR (Infineon Technologies)
- RoHS Yes
- Description IC PWR SWTCH N-CHAN 1:1 TSDSO-14
- Classification Power Distribution Switches, Load Drivers
-
PDF
Technical Details

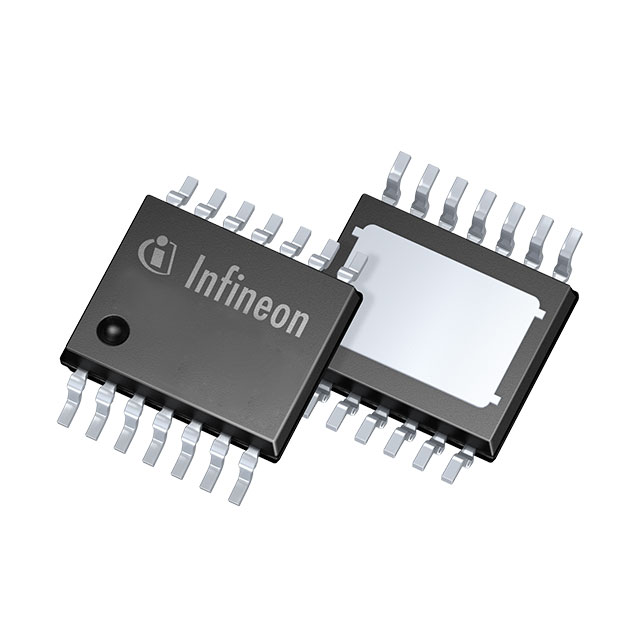

- Package / Case 14-TSSOP (0.154", 3.90mm Width) Exposed Pad
- Output Type N-Channel
- Mounting Type Surface Mount
- Number of Outputs 1
- Interface On/Off
- Switch Type General Purpose
- Operating Temperature -40°C ~ 150°C (TJ)
- Output Configuration High Side
- Rds On (Typ) 8.8mOhm
- Input Type Non-Inverting
- Voltage - Load 6V ~ 18V
- Voltage - Supply (Vcc/Vdd) Not Required
- Current - Output (Max) 11A
- Ratio - Input:Output 1:1
- Supplier Device Package PG-TSDSO-14-22
- Fault Protection Over Current, Over Voltage, Short Circuit, UVLO
- Grade Automotive
- Qualification AEC-Q100
