- Product Model LTC1693-5CMS8#PBF
- Brand Linear Technology (Analog Devices, Inc.)
- RoHS Yes
- Description IC GATE DRVR HIGH-SIDE 8MSOP
- Classification Gate Drivers
-
PDF
Technical Details

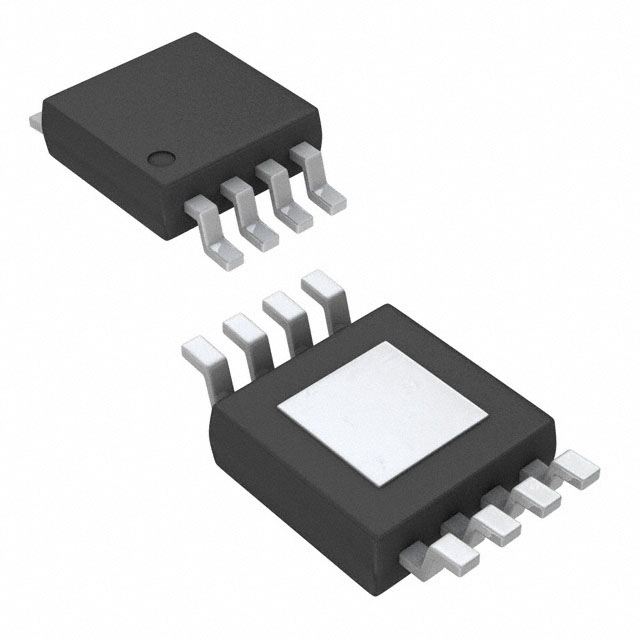

- Package / Case 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
- Mounting Type Surface Mount
- Operating Temperature 0°C ~ 150°C (TJ)
- Voltage - Supply 4.5V ~ 13.2V
- Input Type Inverting, Non-Inverting
- Supplier Device Package 8-MSOP
- Rise / Fall Time (Typ) 16ns, 16ns
- Channel Type Single
- Driven Configuration High-Side
- Number of Drivers 1
- Gate Type P-Channel MOSFET
- Logic Voltage - VIL, VIH 1.7V, 2.2V
- Current - Peak Output (Source, Sink) 1.5A, 1.5A
- DigiKey Programmable Not Verified
