- Product Model NJW4830U2-TE2
- Brand RICOH/Nisshinbo Micro Devices
- RoHS No
- Description SINGLE HIGH SIDE SWITCH
- Classification Power Distribution Switches, Load Drivers
-
PDF
Technical Details
- Features Status Flag
- Package / Case SOT-89-5/6
- Output Type P-Channel
- Mounting Type Surface Mount
- Number of Outputs 1
- Switch Type General Purpose
- Operating Temperature -40°C ~ 85°C
- Output Configuration High Side
- Rds On (Typ) 350mOhm
- Input Type Non-Inverting
- Voltage - Load 0V ~ 45V
- Voltage - Supply (Vcc/Vdd) 4.6V ~ 40V
- Current - Output (Max) 500mA
- Ratio - Input:Output 1:1
- Supplier Device Package SOT-89-5
- Fault Protection Current Limiting (Fixed), Over Temperature
Related Products
DUAL BOOTSTRAPPED 12V MOSFET DRI
Inventory: 2500

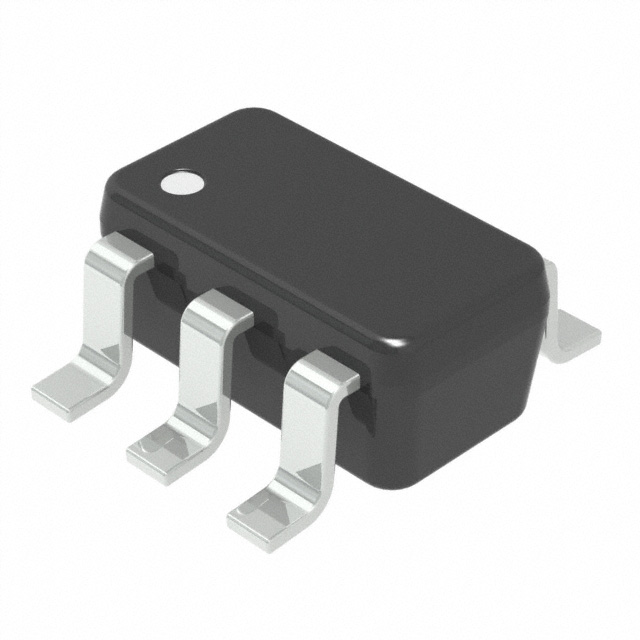

IC GATE DRVR HIGH-SIDE SOT23-6
Inventory: 21892
IC GATE DRVR HIGH-SIDE SOT23-6
Inventory: 19183

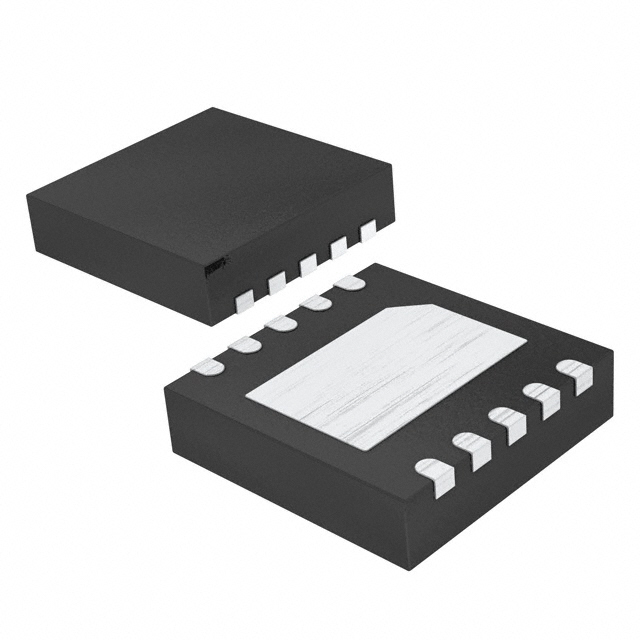

IC PWR SWITCH P-CHAN 1:1 TSON10
Inventory: 129012

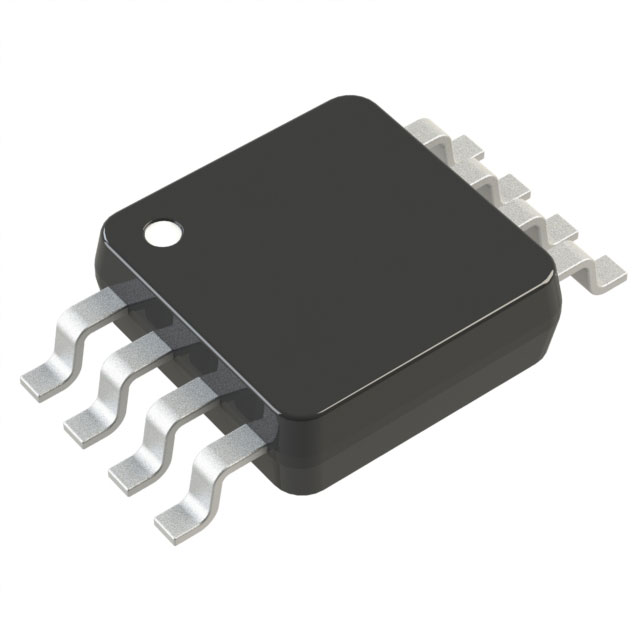

IC GATE DRVR HIGH-SIDE 8MSOP
