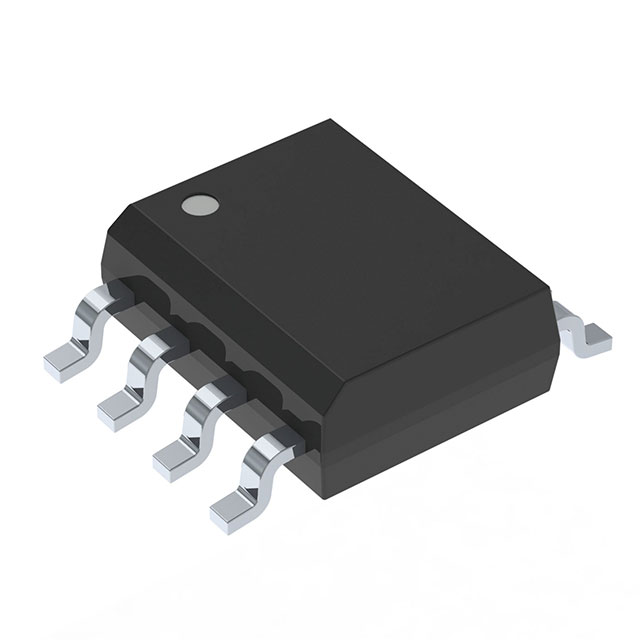

- Product Model IR2118SPBF
- Brand IR (Infineon Technologies)
- RoHS Yes
- Description IC GATE DRVR HIGH-SIDE 8SOIC
- Classification Gate Drivers
-
PDF
Technical Details
- Package / Case 8-SOIC (0.154", 3.90mm Width)
- Mounting Type Surface Mount
- Operating Temperature -40°C ~ 150°C (TJ)
- Voltage - Supply 10V ~ 20V
- Input Type Inverting
- High Side Voltage - Max (Bootstrap) 600 V
- Supplier Device Package 8-SOIC
- Rise / Fall Time (Typ) 80ns, 40ns
- Channel Type Single
- Driven Configuration High-Side
- Number of Drivers 1
- Gate Type IGBT, N-Channel MOSFET
- Logic Voltage - VIL, VIH 6V, 9.5V
- Current - Peak Output (Source, Sink) 250mA, 500mA
- DigiKey Programmable Not Verified
