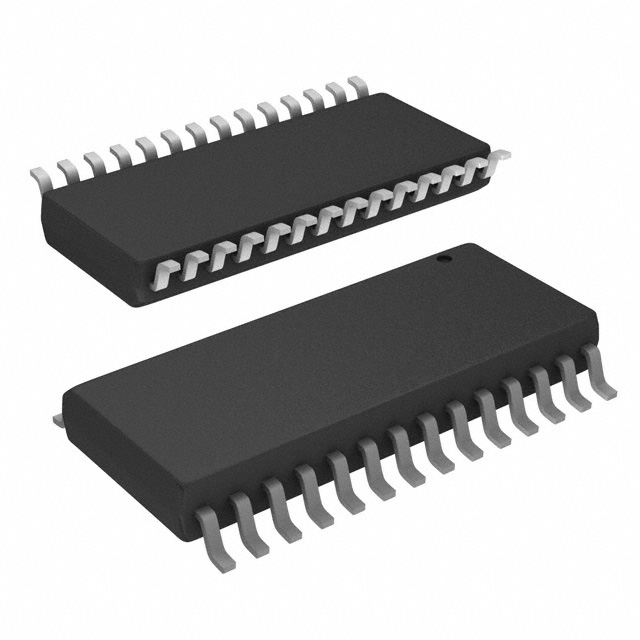

- Product Model IR2130SPBF
- Brand IR (Infineon Technologies)
- RoHS Yes
- Description IC GATE DRVR HALF-BRIDGE 28SOIC
- Classification Gate Drivers
-
PDF
Technical Details
- Package / Case 28-SOIC (0.295", 7.50mm Width)
- Mounting Type Surface Mount
- Operating Temperature -40°C ~ 150°C (TJ)
- Voltage - Supply 10V ~ 20V
- Input Type Inverting
- High Side Voltage - Max (Bootstrap) 600 V
- Supplier Device Package 28-SOIC
- Rise / Fall Time (Typ) 80ns, 35ns
- Channel Type 3-Phase
- Driven Configuration Half-Bridge
- Number of Drivers 6
- Gate Type IGBT, N-Channel MOSFET
- Logic Voltage - VIL, VIH 0.8V, 2.2V
- Current - Peak Output (Source, Sink) 250mA, 500mA
- DigiKey Programmable Not Verified
Related Products
IC VREF SERIES 0.12% 8MSOP
Inventory: 4102
IC GATE DRVR HIGH-SIDE 8SOIC
Inventory: 8140

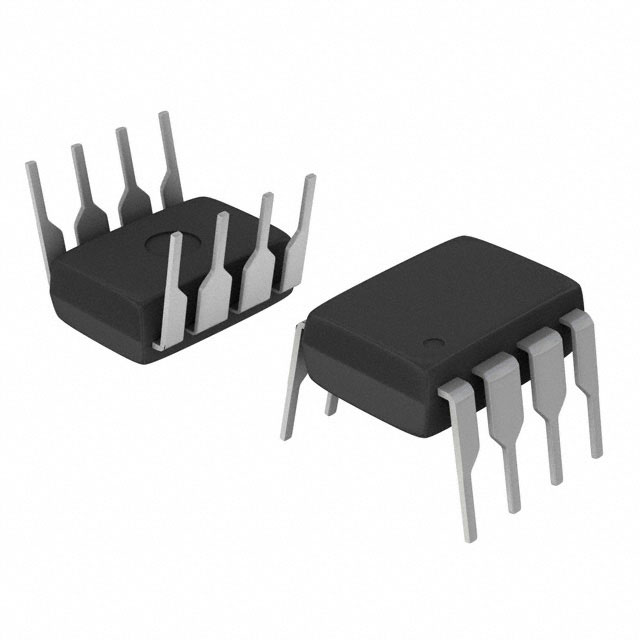

IC GATE DRVR HIGH-SIDE 8DIP
