- Product Model IR2109PBF
- Brand IR (Infineon Technologies)
- RoHS Yes

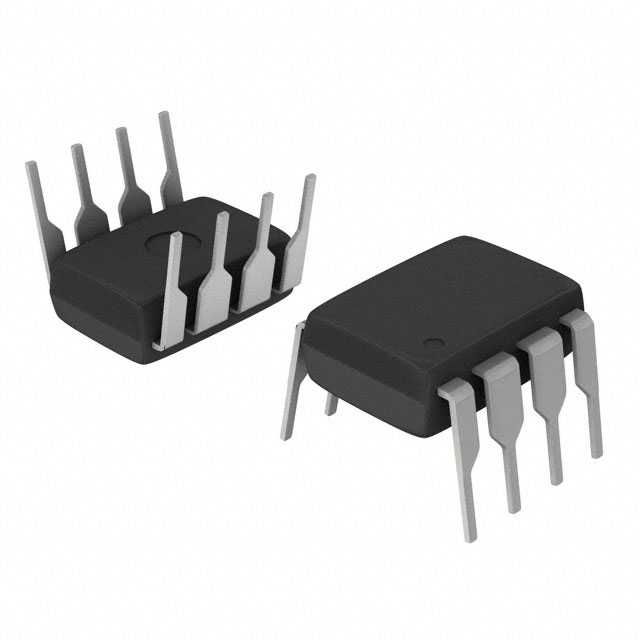

- Description IC GATE DRVR HALF-BRIDGE 8DIP
- Classification Gate Drivers
-
PDF
Technical Details
- Package / Case 8-DIP (0.300", 7.62mm)
- Mounting Type Through Hole
- Operating Temperature -40°C ~ 150°C (TJ)
- Voltage - Supply 10V ~ 20V
- Input Type Non-Inverting
- High Side Voltage - Max (Bootstrap) 600 V
- Supplier Device Package 8-PDIP
- Rise / Fall Time (Typ) 150ns, 50ns
- Channel Type Synchronous
- Driven Configuration Half-Bridge
- Number of Drivers 2
- Gate Type IGBT, N-Channel MOSFET
- Logic Voltage - VIL, VIH 0.8V, 2.9V
- Current - Peak Output (Source, Sink) 200mA, 350mA
- DigiKey Programmable Not Verified
