Technical Details

• Features Open Drain

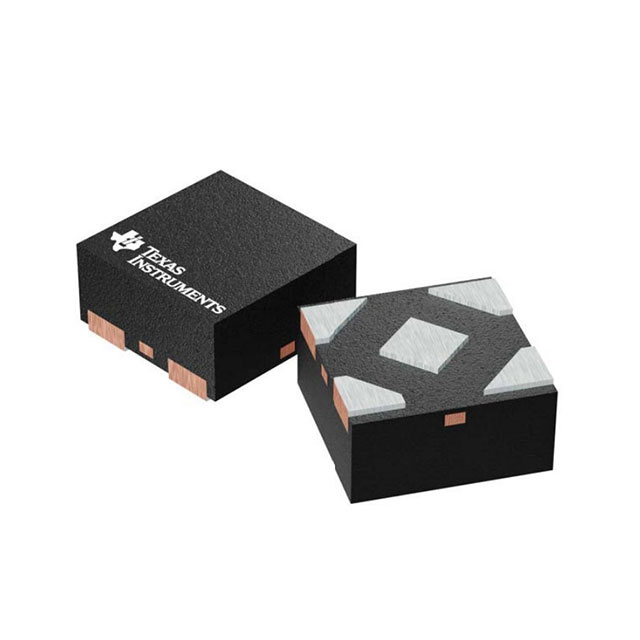

• Package / Case 4-XFDFN Exposed Pad
• Mounting Type Surface Mount
• Logic Type NAND Gate
• Operating Temperature -40°C ~ 85°C
• Voltage - Supply 1.65V ~ 5.5V
• Current - Output High, Low -, 32mA
• Number of Inputs 2
• Supplier Device Package 5-X2SON (0.8x0.8)
• Input Logic Level - High 1.2V ~ 2V
• Input Logic Level - Low 0.7V ~ 0.8V
• Max Propagation Delay @ V, Max CL 4.4ns @ 5V, 50pF
• Number of Circuits 1
• Current - Quiescent (Max) 10 µA
