Technical Details

• Features Schmitt Trigger

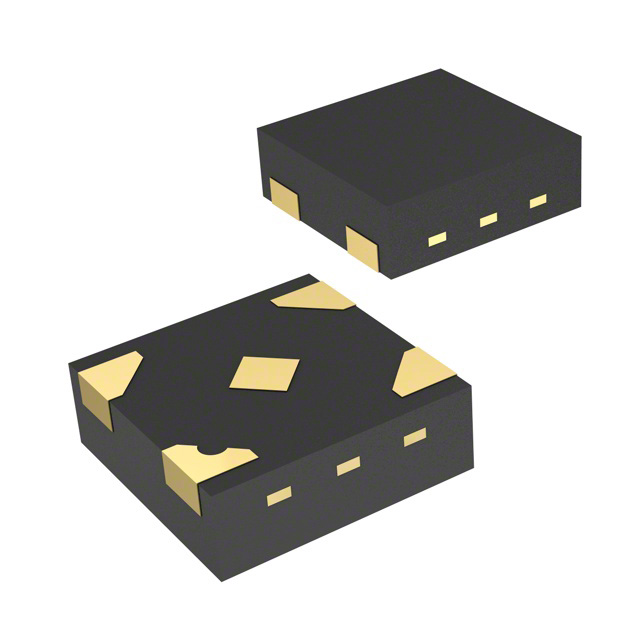

• Package / Case 4-XFDFN Exposed Pad
• Mounting Type Surface Mount
• Logic Type Inverter
• Operating Temperature -40°C ~ 85°C (TA)
• Voltage - Supply 1.65V ~ 5.5V
• Current - Output High, Low 32mA, 32mA
• Number of Inputs 1
• Supplier Device Package 5-X2SON (0.8x0.8)
• Input Logic Level - High 1.16V ~ 3.33V
• Input Logic Level - Low 0.39V ~ 1.87V
• Max Propagation Delay @ V, Max CL 6.5ns @ 2.5V, 50pF
• Number of Circuits 1
• Current - Quiescent (Max) 10 µA
