- Product Model NCP45524IMNTWG-H
- Brand Sanyo Semiconductor/onsemi
- RoHS Yes
- Description IC PWR SWITCH N-CHAN 1:1 8DFN
- Classification Power Distribution Switches, Load Drivers
-
PDF
Technical Details
- Features Power Good

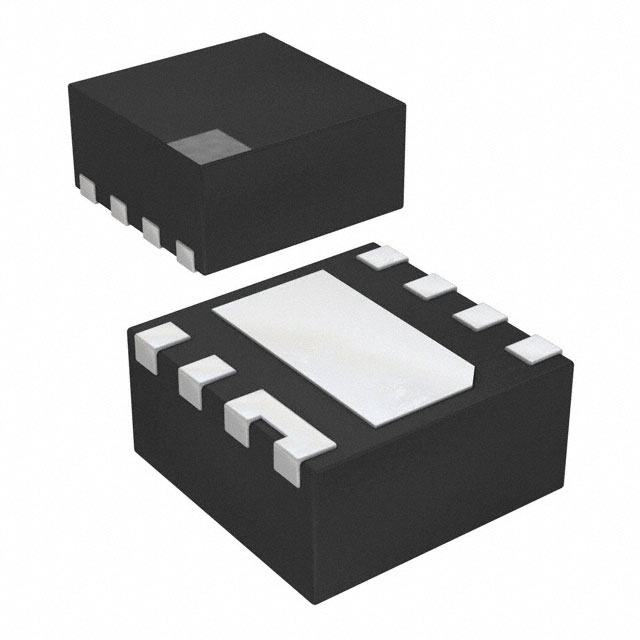

- Package / Case 8-VFDFN Exposed Pad
- Output Type N-Channel
- Mounting Type Surface Mount
- Number of Outputs 1
- Interface On/Off
- Switch Type General Purpose
- Operating Temperature -40°C ~ 85°C (TA)
- Output Configuration High Side
- Rds On (Typ) 18mOhm
- Input Type Non-Inverting
- Voltage - Load 0.5V ~ 13.5V
- Voltage - Supply (Vcc/Vdd) 3V ~ 5.5V
- Current - Output (Max) 6A
- Ratio - Input:Output 1:1
- Supplier Device Package 8-DFN (2x2)
Related Products

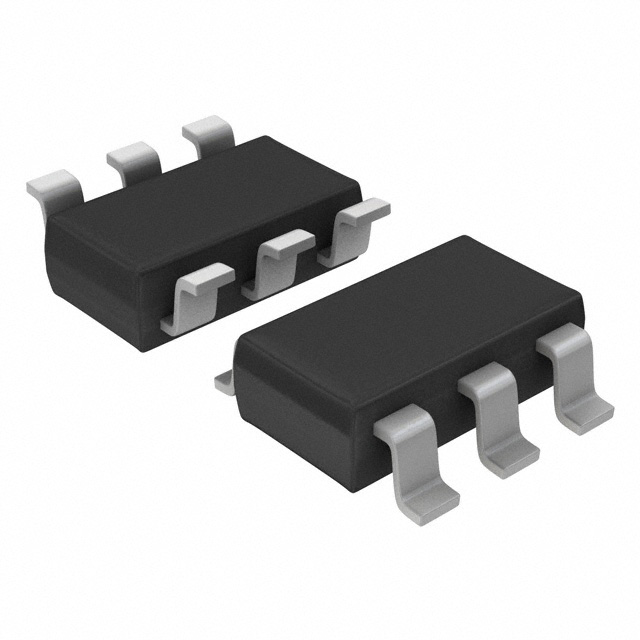

IC PWR SWITCH P-CHAN 1:1 SOT25
Inventory: 101425
IC TXRX FULL/HALF 4/4 48QFN
Inventory: 713

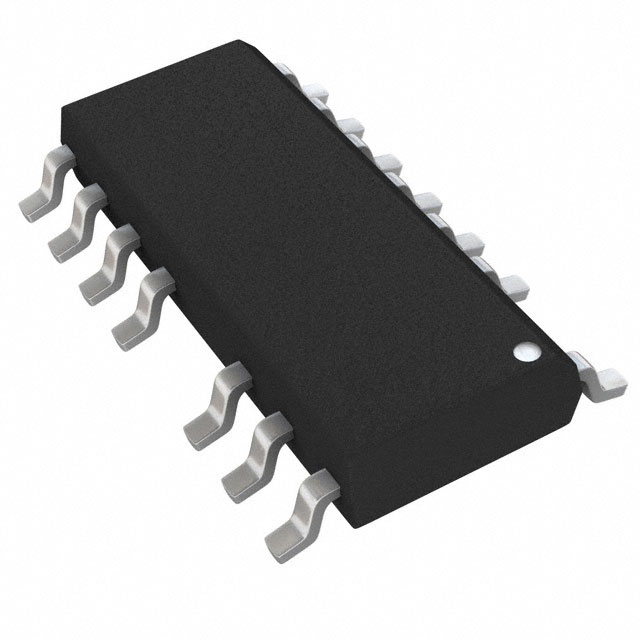

IC OFFLINE SW HALF-BRDG 16SOIC
Inventory: 2043
IC SUPERVISOR 1 CHANNEL 6TSOP
Inventory: 10504
IC PWR SWITCH N-CHAN 1:1 8DFN
Inventory: 5365
IC PWR SWITCH N-CHAN 1:1 8DFN
Inventory: 0
IC PWR SWITCH N-CHAN 1:1 8DFN
Inventory: 4
IC PWR SWITCH N-CHAN 1:1 12DFN
Inventory: 11475
2A LOW NOISE LDO, 20 LEAD 5X5 QF
Inventory: 4284

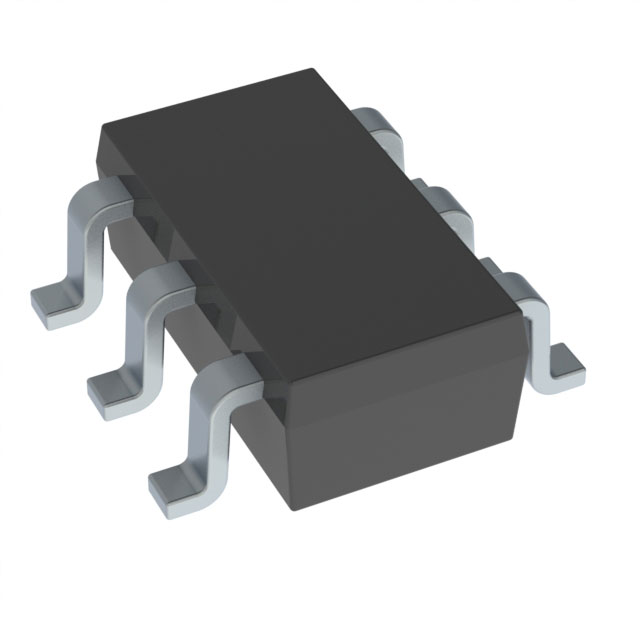

IC PWR SWITCH P-CHAN 1:1 6TSOP
