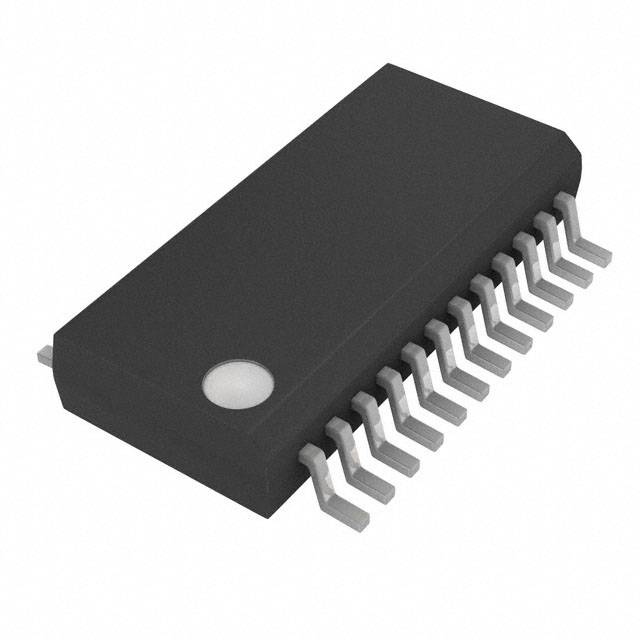

- Product Model NCV7754DPR2G
- Brand Sanyo Semiconductor/onsemi
- RoHS Yes
- Description IC PWR DRIVER N-CHAN 1:8 24SSOP
- Classification Power Distribution Switches, Load Drivers
-
PDF
Technical Details
- Package / Case 24-SSOP (0.154", 3.90mm Width)
- Output Type N-Channel
- Mounting Type Surface Mount
- Number of Outputs 8
- Interface SPI
- Switch Type Relay, Solenoid Driver
- Operating Temperature -40°C ~ 150°C (TJ)
- Output Configuration Low Side
- Rds On (Typ) 800mOhm
- Voltage - Load 36V (Max)
- Voltage - Supply (Vcc/Vdd) 3V ~ 5.5V
- Current - Output (Max) 500mA
- Ratio - Input:Output 1:8
- Supplier Device Package 24-SSOP
- Fault Protection Open Load Detect, Over Temperature
- Grade Automotive
- Qualification AEC-Q100
Related Products
IC PWR DRIVER N-CHAN 1:8 24SSOP
Inventory: 8491
IC TRANSCEIVER 1/1 8SOIC
Inventory: 2729

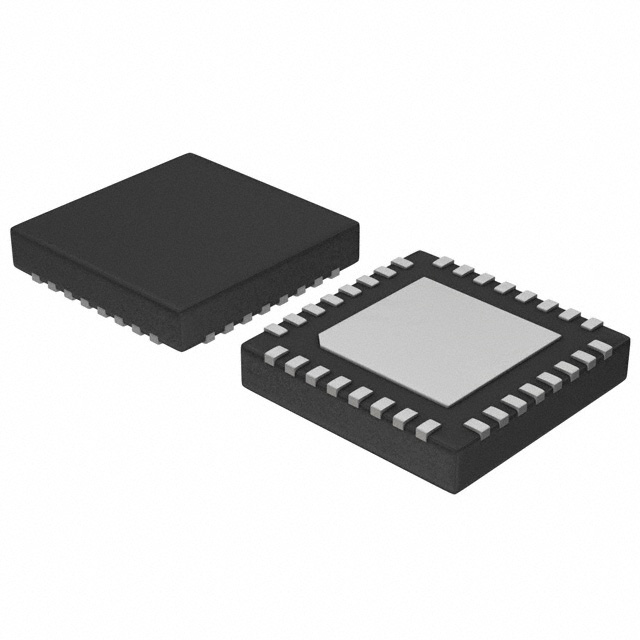

IC GATE DRVR LOW-SIDE 32QFN
