- Product Model L9733XPTR
- Brand STMicroelectronics
- RoHS Yes
- Description IC PWR DRVR N-CHAN 1:8 PWRSSO28
- Classification Power Distribution Switches, Load Drivers
-
PDF
Technical Details
- Features PWM Input

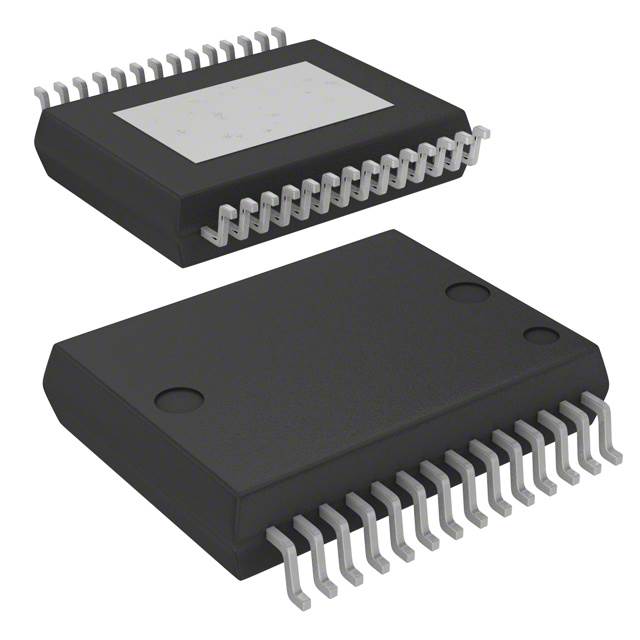

- Package / Case 28-SSOP (0.295", 7.50mm Width) Exposed Pad
- Output Type N-Channel
- Mounting Type Surface Mount
- Number of Outputs 8
- Interface SPI
- Switch Type General Purpose
- Operating Temperature -40°C ~ 125°C (TA)
- Output Configuration High Side or Low Side
- Rds On (Typ) 700mOhm (Max)
- Input Type Non-Inverting
- Voltage - Load 4.5V ~ 18V
- Voltage - Supply (Vcc/Vdd) 4.5V ~ 5.5V
- Current - Output (Max) 1A
- Ratio - Input:Output 1:8
- Supplier Device Package PowerSSO-28 Exposed Pad
- Fault Protection Open Load Detect, Over Temperature
