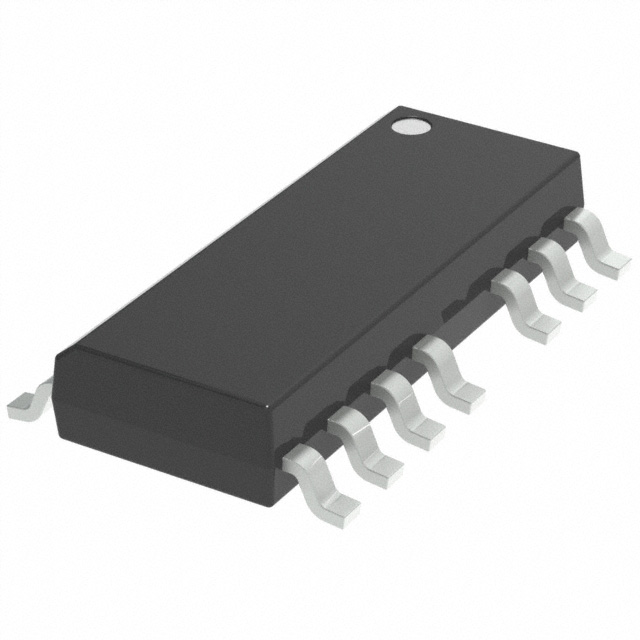

- Product Model NCP1397ADR2G
- Brand Sanyo Semiconductor/onsemi
- RoHS Yes
- Description IC OFFLINE SW HALF-BRDG 16SOIC
- Classification AC DC Converters, Offline Switches
-
PDF
Technical Details
- Package / Case 16-SOIC (0.154", 3.90mm Width), 15 Leads
- Mounting Type Surface Mount
- Operating Temperature -40°C ~ 125°C (TJ)
- Duty Cycle 50%
- Frequency - Switching 60kHz ~ 500kHz
- Internal Switch(s) No
- Output Isolation Isolated
- Topology Half-Bridge
- Voltage - Supply (Vcc/Vdd) 9.5V ~ 20V
- Supplier Device Package 16-SOIC
- Fault Protection Current Limiting, Over Temperature, Over Voltage, Short Circuit
- Voltage - Start Up 10.5 V
- Control Features Frequency Control
