- Product Model BV2HM050EFV-CE2
- Brand ROHM Semiconductor
- RoHS No
- Description AUTOMOTIVE IPD SERIES 2CH HIGH S
- Classification Power Distribution Switches, Load Drivers
-
PDF
Technical Details
- Features Slew Rate Controlled
- Package / Case 20-VSSOP (0.173", 4.40mm Width) Exposed Pad
- Output Type N-Channel
- Mounting Type Surface Mount
- Number of Outputs 2
- Interface On/Off
- Switch Type General Purpose
- Operating Temperature -40°C ~ 150°C (TJ)
- Output Configuration High Side
- Rds On (Typ) 50mOhm
- Input Type Non-Inverting
- Voltage - Load 6V ~ 28V
- Voltage - Supply (Vcc/Vdd) 6V ~ 28V
- Current - Output (Max) 5A
- Ratio - Input:Output 1:1
- Supplier Device Package 20-HTSSOP-B
- Fault Protection Current Limiting (Adjustable), Open Load Detect, Over Temperature, UVLO
- Grade Automotive
- Qualification AEC-Q100
Related Products
AUTOMOTIVE IPD, 2CH LOW SIDE SWI
Inventory: 2524
IC PWR SWITCH N-CHAN 1:1 DSO-8
Inventory: 11784
BUILT-IN CURRENT SENSING FUNCTIO
Inventory: 4045
BUILT-IN OUTPUT DIAGNOSIS 1CH HI
Inventory: 6270
1CH HIGH SIDE SWITCH WITH OUTPUT
Inventory: 60
BUILT-IN OUTPUT DIAGNOSIS, 1CH H
Inventory: 5000

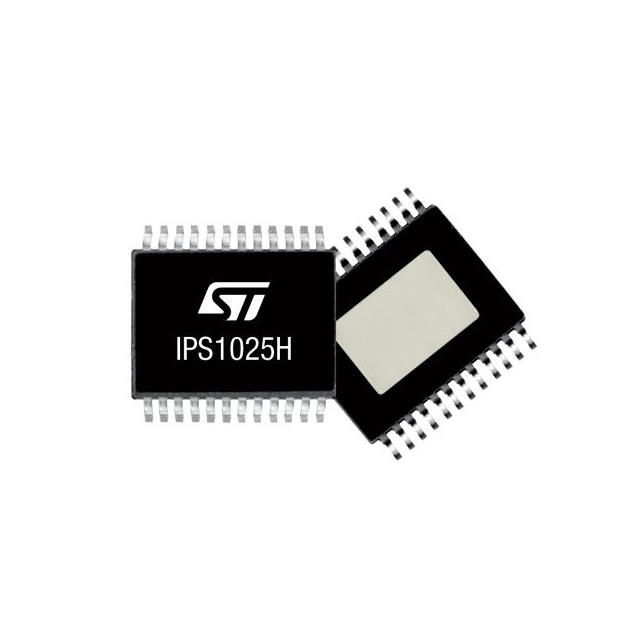

IPS1025
