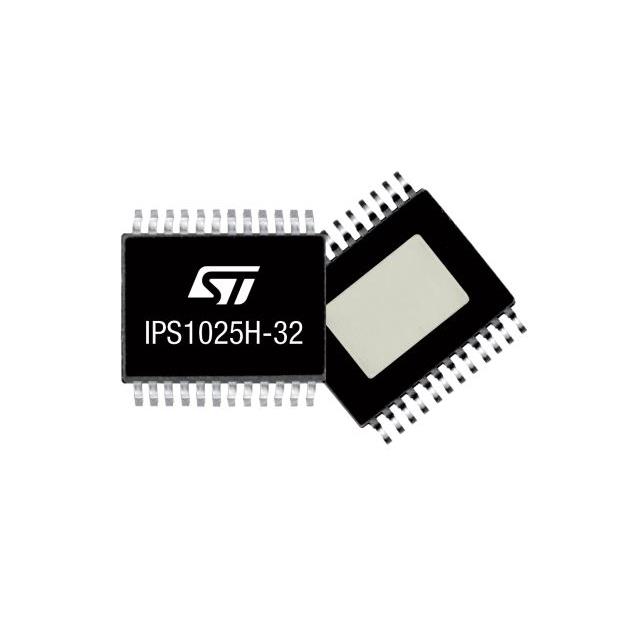

- Product Model IPS1025HTR
- Brand STMicroelectronics
- RoHS Yes
- Description IPS1025
- Classification Power Distribution Switches, Load Drivers
-
PDF
Technical Details
- Package / Case 24-PowerBSOP (0.295", 7.50mm Width)
- Output Type N-Channel
- Mounting Type Surface Mount
- Number of Outputs 1
- Interface Logic
- Switch Type General Purpose
- Operating Temperature -40°C ~ 150°C
- Output Configuration High Side
- Rds On (Typ) 12mOhm
- Input Type Non-Inverting
- Voltage - Supply (Vcc/Vdd) 8V ~ 60V
- Current - Output (Max) 5A
- Ratio - Input:Output 1:1
- Supplier Device Package PowerSSO-24
- Fault Protection Current Limiting (Adjustable), Open Load Detect, Over Temperature, Reverse Current, UVLO
