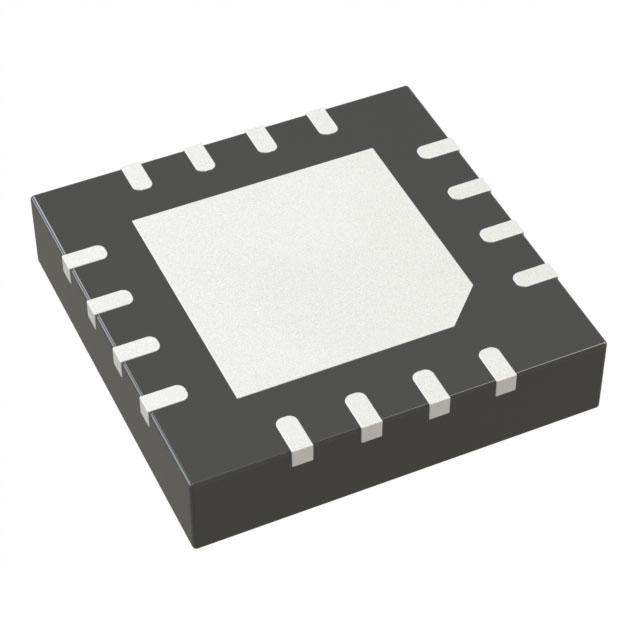

- Product Model TPS22997RYZR
- Brand Texas Instruments
- RoHS Yes
- Description 5.5-V, 10-A 4-M ON-RESISTANCE LO
- Classification Power Distribution Switches, Load Drivers
-
PDF
Technical Details
- Features Load Discharge, Power Good, Slew Rate Controlled
- Package / Case 10-WFQFN
- Output Type N-Channel
- Mounting Type Surface Mount
- Number of Outputs 1
- Interface On/Off
- Switch Type General Purpose
- Operating Temperature -40°C ~ 125°C (TA)
- Output Configuration High Side
- Rds On (Typ) 4mOhm
- Input Type Non-Inverting
- Voltage - Load 0.1V ~ 5.5V
- Voltage - Supply (Vcc/Vdd) 1.5V ~ 5.5V
- Current - Output (Max) 10A
- Ratio - Input:Output 1:1
- Supplier Device Package 10-WQFN-HR (1.5x2)
- Fault Protection Over Temperature
