- Product Model LS12052BD33
- Brand Wickmann / Littelfuse
- RoHS No
- Description 18V/5A LOAD SWITCH W/ BFET CONTR
- Classification Power Distribution Switches, Load Drivers
-
PDF
Technical Details
- Features Load Discharge, Slew Rate Controlled

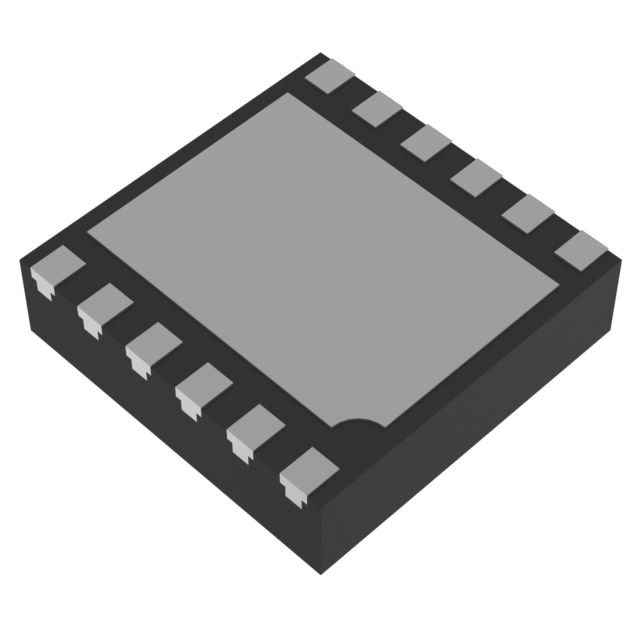

- Package / Case 10-WFDFN Exposed Pad
- Output Type N-Channel
- Mounting Type Surface Mount
- Number of Outputs 1
- Interface On/Off
- Switch Type General Purpose
- Operating Temperature 125°C (TJ)
- Output Configuration High Side
- Rds On (Typ) 25mOhm
- Input Type Non-Inverting
- Voltage - Load 2.7V ~ 18V
- Voltage - Supply (Vcc/Vdd) Not Required
- Current - Output (Max) 3.6A
- Ratio - Input:Output 1:1
- Supplier Device Package 10-DFN (3x3)
- Fault Protection Current Limiting (Adjustable), Over Load, Over Temperature, Over Voltage, Short Circuit, UVLO
