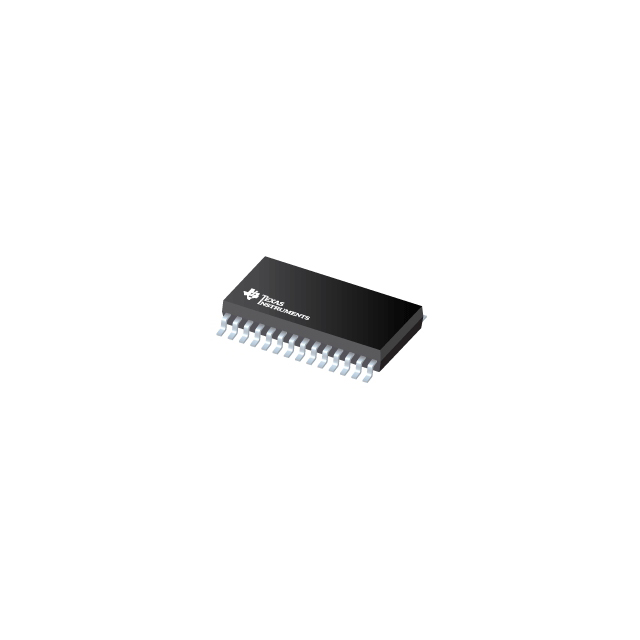

- Product Model DRV8424PPWPR
- Brand Texas Instruments
- RoHS No
- Description 35V, 2.5A BIPOLAR STEPPER OR DUA
- Classification Motor Drivers, Controllers
-
PDF
Technical Details
- Package / Case 28-PowerTSSOP (0.173", 4.40mm Width)
- Mounting Type Surface Mount
- Function Driver - Fully Integrated, Control and Power Stage
- Current - Output 2.5A
- Interface PWM
- Operating Temperature -40°C ~ 125°C (TA)
- Output Configuration Half Bridge (2)
- Voltage - Supply 0V ~ 5.5V
- Applications Consumer, Industrial
- Technology Power MOSFET
- Voltage - Load 4.5V ~ 33V
- Supplier Device Package 28-HTSSOP
- Motor Type - Stepper Bipolar
- Motor Type - AC, DC Brushed DC
