- Product Model DRV8424RGER
- Brand Texas Instruments
- RoHS Yes
- Description 35V, 2.5A BIPOLAR STEPPER MOTOR
- Classification Motor Drivers, Controllers
-
PDF
Technical Details

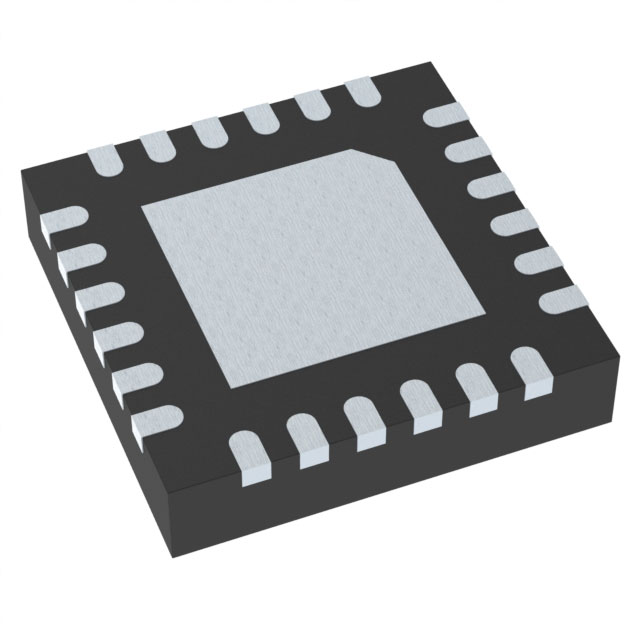

- Package / Case 24-VFQFN Exposed Pad
- Mounting Type Surface Mount
- Function Driver - Fully Integrated, Control and Power Stage
- Current - Output 2.5A
- Interface Step/Direction
- Operating Temperature -40°C ~ 125°C (TA)
- Output Configuration Half Bridge (2)
- Voltage - Supply 0V ~ 5.5V
- Applications Consumer, Industrial
- Technology Power MOSFET
- Voltage - Load 4.5V ~ 33V
- Supplier Device Package 24-VQFN (4x4)
- Motor Type - Stepper Bipolar
- Motor Type - AC, DC Brushed DC
- Step Resolution 1 ~ 1/256
