Technical Details

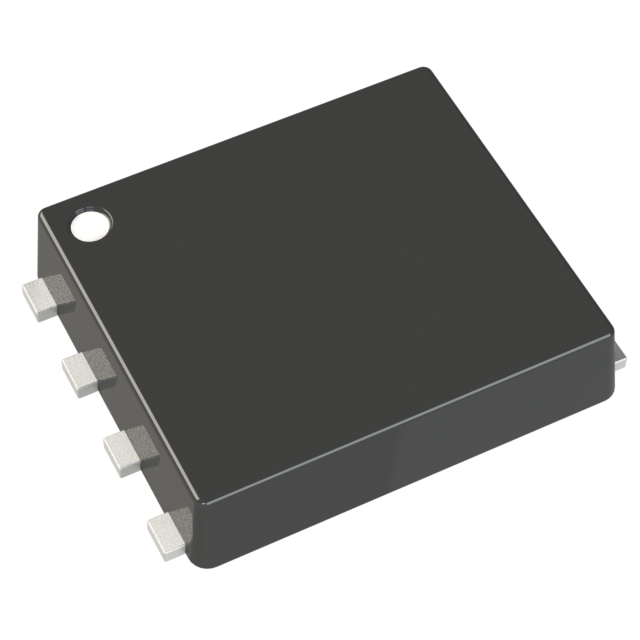

• Package / Case 16-XFQFN Exposed Pad
• Mounting Type Surface Mount
• Operating Temperature -40°C ~ 125°C (TA)
• On-State Resistance (Max) 900mOhm
• -3db Bandwidth 15MHz
• Supplier Device Package 16-HXQFN (3x3)
• Voltage - Supply, Single (V+) 1.4V ~ 4.3V
• Charge Injection 15pC
• Crosstalk -90dB @ 100kHz
• Multiplexer/Demultiplexer Circuit 8:1
• Channel-to-Channel Matching (ΔRon) 70mOhm
• Switch Time (Ton, Toff) (Max) 45ns, 25ns
• Channel Capacitance (CS(off), CD(off)) 35pF
• Current - Leakage (IS(off)) (Max) 10nA
• Grade Automotive
• Number of Circuits 1
• Qualification AEC-Q100
