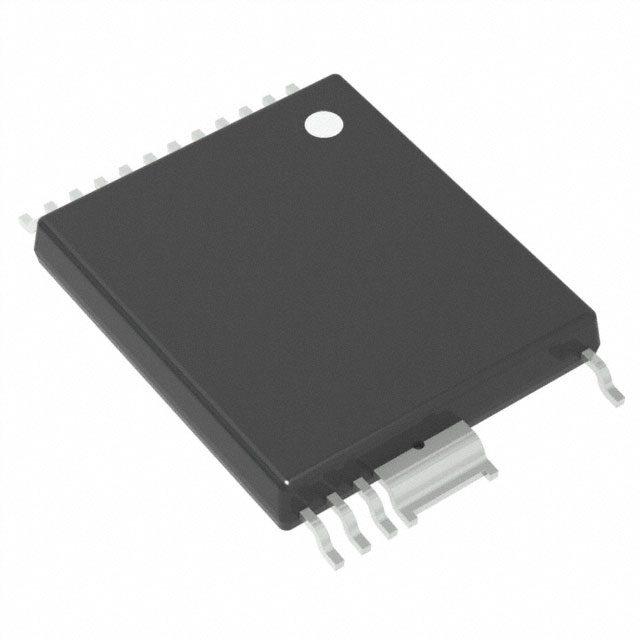

- Product Model BRD1167C-TL
- Brand Power Integrations
- RoHS Yes
- Description IC HALF BRIDG DRV 11.5A INSOP24C
- Classification Full Half-Bridge (H Bridge) Drivers
-
PDF
Technical Details
- Features Bootstrap Circuit
- Package / Case 24-PowerSMD Module (0.425", 10.80mm Width), 17 Leads
- Mounting Type Surface Mount
- Interface Logic, PWM
- Operating Temperature -40°C ~ 150°C (TJ)
- Output Configuration Half Bridge
- Rds On (Typ) 470mOhm LS + HS
- Applications DC Motors, General Purpose
- Current - Output / Channel 11.5A
- Technology Power MOSFET
- Voltage - Load 600V
- Supplier Device Package InSOP-24C
- Fault Protection Current Limiting, Over Temperature, UVLO
- Load Type Capacitive and Resistive
