- Product Model ADP3120AJCPZ-RL
- Brand Sanyo Semiconductor/onsemi
- RoHS Yes
- Description IC GATE DRVR HALF-BRIDGE 8DFN
- Classification Gate Drivers
-
PDF
Technical Details

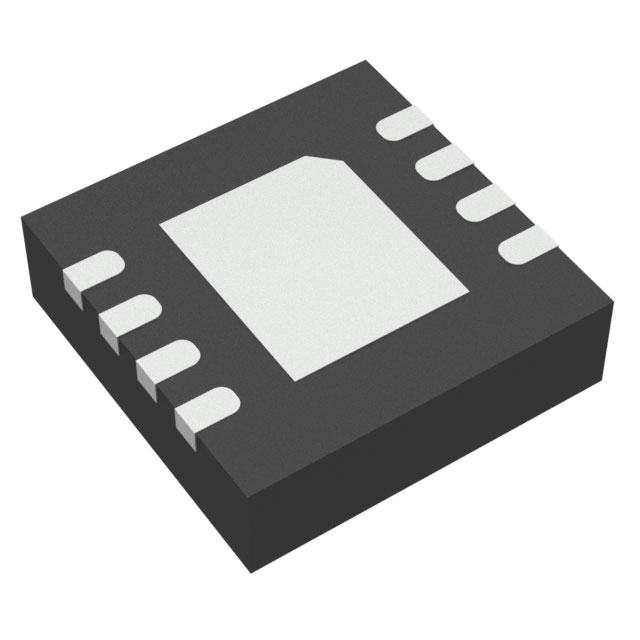

- Package / Case 8-VFDFN Exposed Pad
- Mounting Type Surface Mount
- Operating Temperature -20°C ~ 150°C (TJ)
- Voltage - Supply 4.6V ~ 13.2V
- Input Type Inverting, Non-Inverting
- High Side Voltage - Max (Bootstrap) 35 V
- Supplier Device Package 8-DFN (3x3)
- Rise / Fall Time (Typ) 20ns, 11ns
- Channel Type Synchronous
- Driven Configuration Half-Bridge
- Number of Drivers 2
- Gate Type N-Channel MOSFET
- Logic Voltage - VIL, VIH 0.8V, 2V
- DigiKey Programmable Not Verified
Related Products
IC GATE DRVR HALF-BRIDGE 8DFN
Inventory: 2000
IC GATE DRV HALF-BRDG DFN3030-10
Inventory: 9726
IC GATE DRVR HALF-BRIDGE 8SO
Inventory: 14810

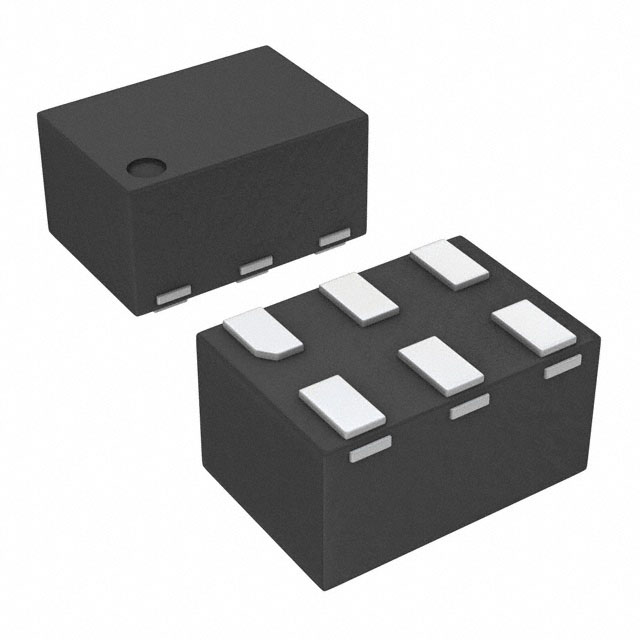

IC OPAMP GP 1 CIRCUIT 6USON
