- Product Model ZXGD3009E6TA
- Brand Zetex Semiconductors (Diodes Inc.)
- RoHS Yes
- Description IC GATE DRVR LOW-SIDE SOT26
- Classification Gate Drivers
-
PDF
Technical Details

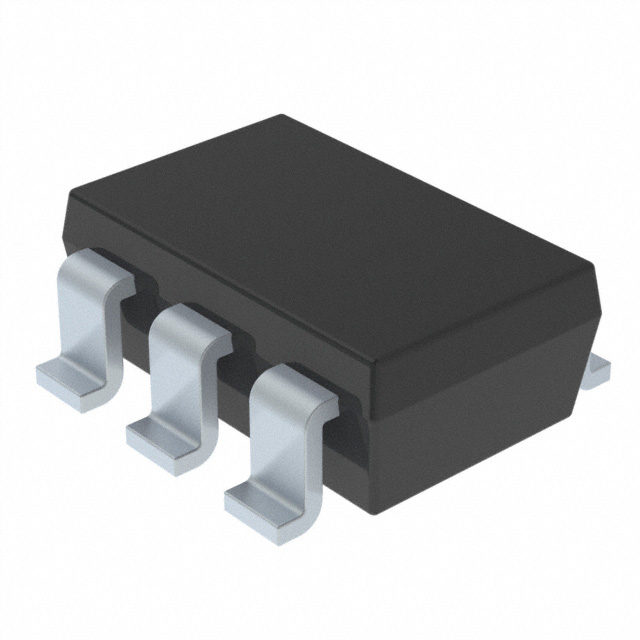

- Package / Case SOT-23-6
- Mounting Type Surface Mount
- Operating Temperature -55°C ~ 150°C (TJ)
- Voltage - Supply 40V (Max)
- Input Type Non-Inverting
- Supplier Device Package SOT-26
- Rise / Fall Time (Typ) 210ns, 240ns
- Channel Type Single
- Driven Configuration Low-Side
- Number of Drivers 1
- Gate Type N-Channel MOSFET
- Current - Peak Output (Source, Sink) 2A, 2A
- Grade Automotive
- DigiKey Programmable Not Verified
- Qualification AEC-Q101
