1
$1.4847
$1.4847
10
$1.2221
$12.2210
100
$0.9494
$94.9400
500
$0.7979
$398.9500
1000
$0.6565
$656.5000
2000
$0.6161
$1,232.2000
6000
$0.5858
$3,514.8000
10000
$0.5555
$5,555.0000
| TYPE | DESCRIPTION |
| Mfr | Vishay General Semiconductor – Diodes Division |
| Series | FRED Pt® |
| Package | Tape & Reel (TR) |
| Product Status | ACTIVE |

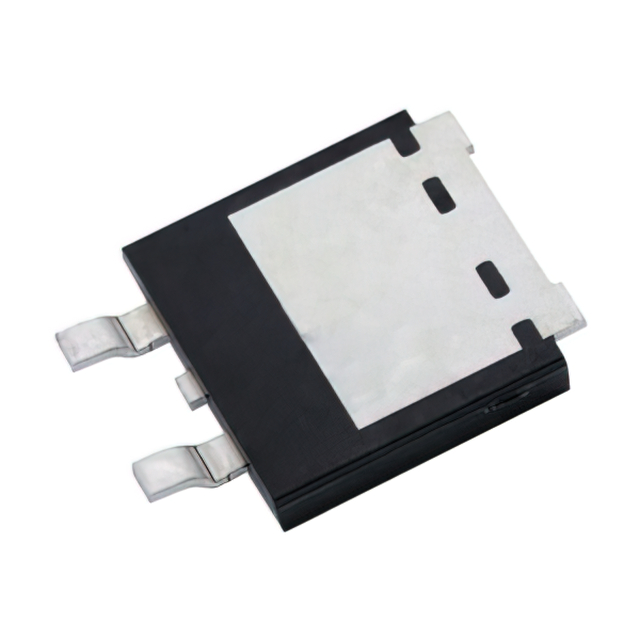

| Package / Case | TO-263-3, D2PAK (2 Leads + Tab), Variant |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 45 ns |
| Technology | Standard |
| Diode Configuration | 1 Pair Common Cathode |
| Current - Average Rectified (Io) (per Diode) | 5A |
| Supplier Device Package | TO-263AC (SMPD) |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Voltage - Forward (Vf) (Max) @ If | 1.5 V @ 5 A |
| Current - Reverse Leakage @ Vr | 3 µA @ 600 V |
