| Mfr | STMicroelectronics |
| Series | MDmesh™ II |
| Package | Tape & Reel (TR) |
| Product Status | OBSOLETE |

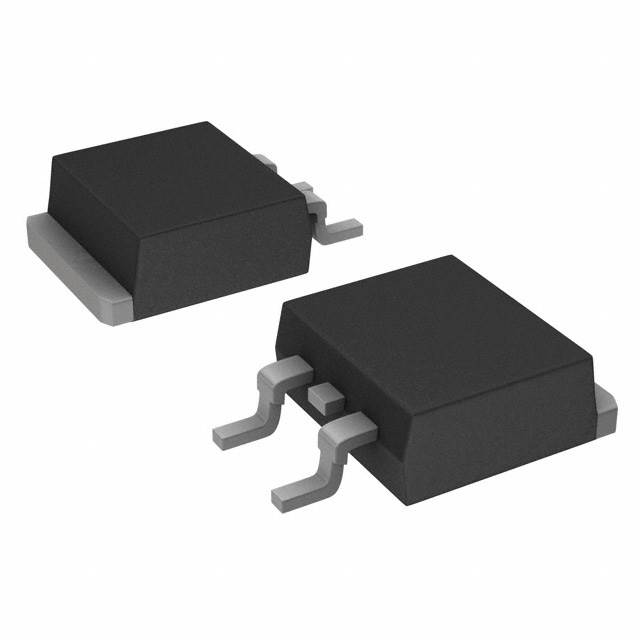

| Package / Case | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 14A (Tc) |
| Rds On (Max) @ Id, Vgs | 299mOhm @ 7A, 10V |
| Power Dissipation (Max) | 125W (Tc) |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Supplier Device Package | D2PAK |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±25V |
| Drain to Source Voltage (Vdss) | 600 V |
| Gate Charge (Qg) (Max) @ Vgs | 37 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 1250 pF @ 50 V |
