- Product Model DGD2003S8-13
- Brand Zetex Semiconductors (Diodes Inc.)
- RoHS Yes
- Description IC GATE DRVR HALF-BRIDGE 8SO
- Classification Gate Drivers
-
PDF
Technical Details

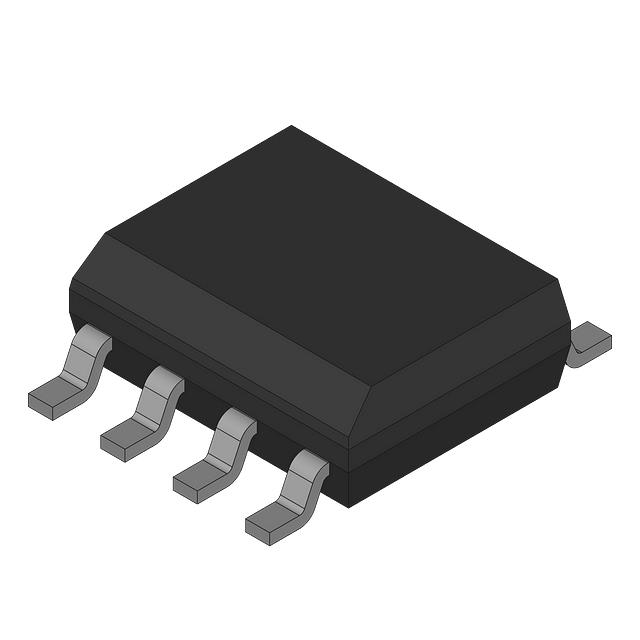

- Package / Case 8-SOIC (0.154", 3.90mm Width)
- Mounting Type Surface Mount
- Operating Temperature -40°C ~ 125°C (TA)
- Voltage - Supply 10V ~ 20V
- Input Type Non-Inverting
- High Side Voltage - Max (Bootstrap) 200 V
- Supplier Device Package 8-SO Type TH
- Rise / Fall Time (Typ) 70ns, 35ns
- Channel Type Synchronous
- Driven Configuration Half-Bridge
- Number of Drivers 2
- Gate Type N-Channel MOSFET
- Logic Voltage - VIL, VIH 0.8V, 2.5V
- Current - Peak Output (Source, Sink) 290mA, 600mA
- DigiKey Programmable Not Verified
