Technical Details

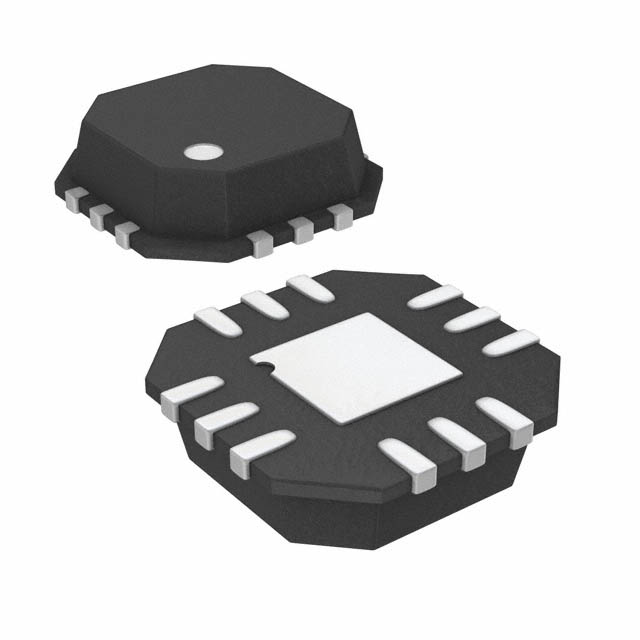

• Package / Case 12-VFQFN Exposed Pad, CSP
• Mounting Type Surface Mount
• Operating Temperature -40°C ~ 125°C (TA)
• On-State Resistance (Max) 650mOhm
• -3db Bandwidth 57MHz
• Supplier Device Package 12-LFCSP-VQ (3x3)
• Voltage - Supply, Single (V+) 1.65V ~ 3.6V
• Charge Injection 40pC
• Crosstalk -90dB @ 100kHz
• Switch Circuit SPDT
• Multiplexer/Demultiplexer Circuit 2:1
• Channel-to-Channel Matching (ΔRon) 40mOhm
• Switch Time (Ton, Toff) (Max) 26ns, 7ns
• Channel Capacitance (CS(off), CD(off)) 25pF
• Current - Leakage (IS(off)) (Max) 200pA (Typ)
• Number of Circuits 2
