- Product Model ADG821BRMZ-REEL7
- Brand Linear Technology (Analog Devices, Inc.)
- RoHS Yes
- Description IC SW SPST-NOX2 600MOHM 8MSOP
- Classification Analog Switches, Multiplexers, Demultiplexers
-
PDF
Technical Details

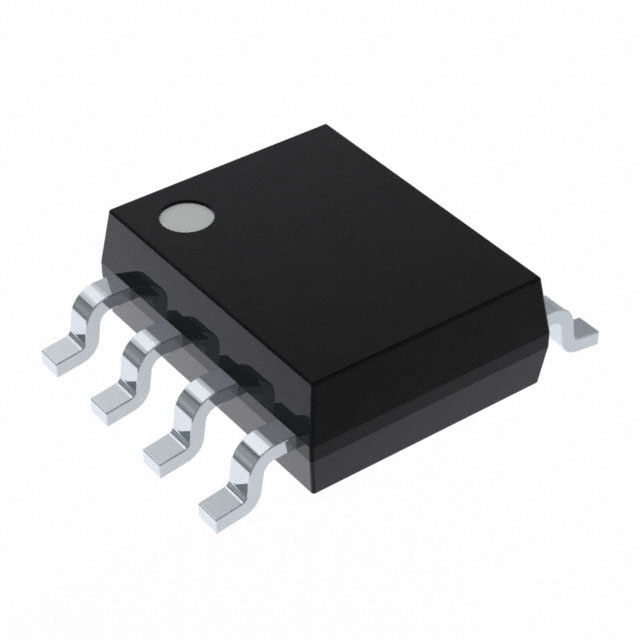

- Package / Case 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
- Mounting Type Surface Mount
- Operating Temperature -40°C ~ 125°C (TA)
- On-State Resistance (Max) 600mOhm
- -3db Bandwidth 24MHz
- Supplier Device Package 8-MSOP
- Voltage - Supply, Single (V+) 1.8V ~ 5.5V
- Charge Injection 15pC
- Crosstalk -82dB @ 1MHz
- Switch Circuit SPST - NO
- Multiplexer/Demultiplexer Circuit 1:1
- Channel-to-Channel Matching (ΔRon) 160mOhm
- Switch Time (Ton, Toff) (Max) 45ns, 16ns
- Channel Capacitance (CS(off), CD(off)) 85pF, 98pF
- Current - Leakage (IS(off)) (Max) 250pA
- Number of Circuits 2
