- Product Model DRV8306HRSMT
- Brand Texas Instruments
- RoHS Yes
- Description IC MTR DRV MULTIPHAS 6-38V 32QFN
- Classification Motor Drivers, Controllers
-
PDF
Inventory:4413
Technical Details

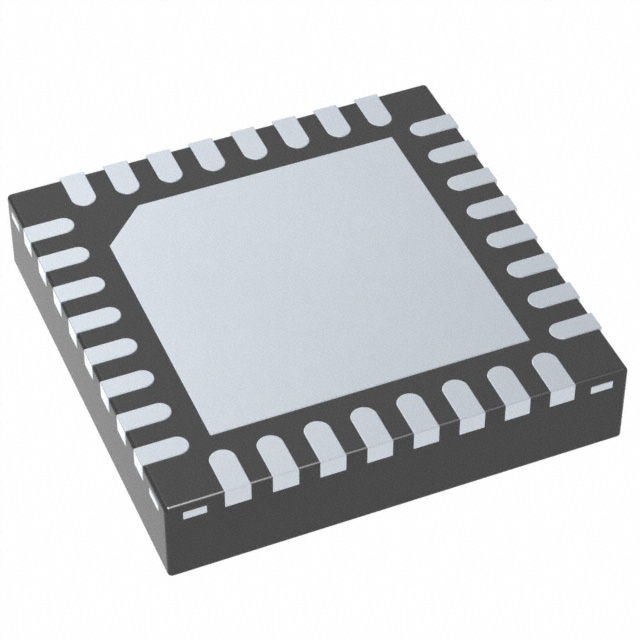

- Package / Case 32-VFQFN Exposed Pad
- Mounting Type Surface Mount
- Function Controller - Commutation, Direction Management
- Current - Output 300mA
- Interface PWM
- Operating Temperature -40°C ~ 125°C (TA)
- Output Configuration Half Bridge (3)
- Voltage - Supply 6V ~ 38V
- Applications General Purpose
- Technology Power MOSFET
- Voltage - Load 0V ~ 5.5V
- Supplier Device Package 32-VQFN (4x4)
- Motor Type - Stepper Multiphase
- Motor Type - AC, DC Brushless DC (BLDC)
