- Product Model MCP14A0304T-E/MNY
- Brand Roving Networks (Microchip Technology)
- RoHS Yes
- Description IC GATE DRVR HI/LOW SIDE 8TDFN
- Classification Gate Drivers
-
PDF
Inventory:4229
Technical Details

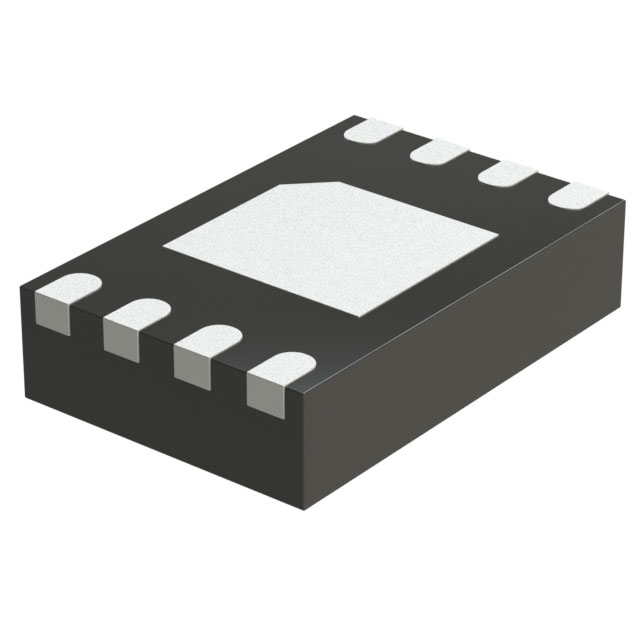

- Package / Case 8-WFDFN Exposed Pad
- Mounting Type Surface Mount
- Operating Temperature -40°C ~ 125°C
- Voltage - Supply 4.5V ~ 18V
- Input Type Non-Inverting
- Supplier Device Package 8-TDFN (2x3)
- Rise / Fall Time (Typ) 12ns, 12ns
- Channel Type Independent
- Driven Configuration High-Side or Low-Side
- Number of Drivers 2
- Gate Type IGBT
- Logic Voltage - VIL, VIH 0.8V, 2V
- Current - Peak Output (Source, Sink) 3A, 3A
- DigiKey Programmable Not Verified
