- Product Model AD7549JNZ
- Brand Linear Technology (Analog Devices, Inc.)
- RoHS Yes
- Description IC DAC 12BIT A-OUT 20DIP
- Classification Digital to Analog Converters (DAC)
-
PDF
Inventory:1528
Technical Details

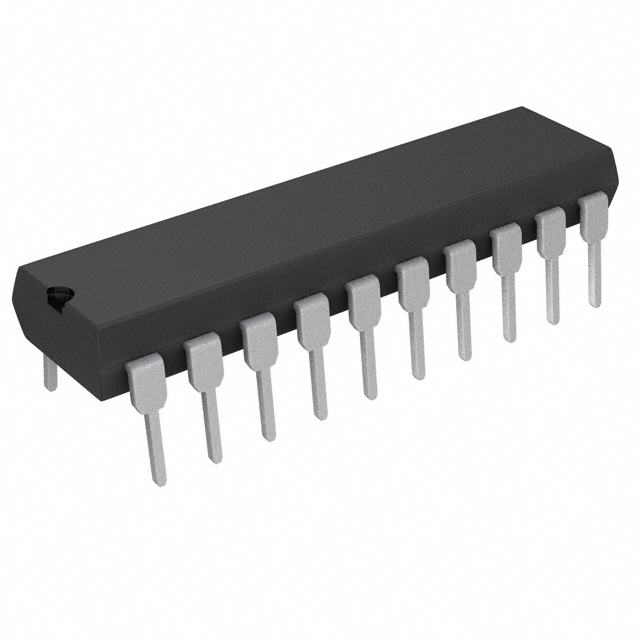

- Package / Case 20-DIP (0.300", 7.62mm)
- Output Type Current - Unbuffered
- Mounting Type Through Hole
- Number of Bits 12
- Data Interface Parallel
- Reference Type External
- Operating Temperature -40°C ~ 85°C
- Voltage - Supply, Analog 15V
- Voltage - Supply, Digital 15V
- Settling Time 1.5µs
- Supplier Device Package 20-PDIP
- Architecture R-2R
- Number of D/A Converters 2
- INL/DNL (LSB) ±1 (Max), ±1 (Max)
- Differential Output No
- DigiKey Programmable Not Verified
