Technical Details

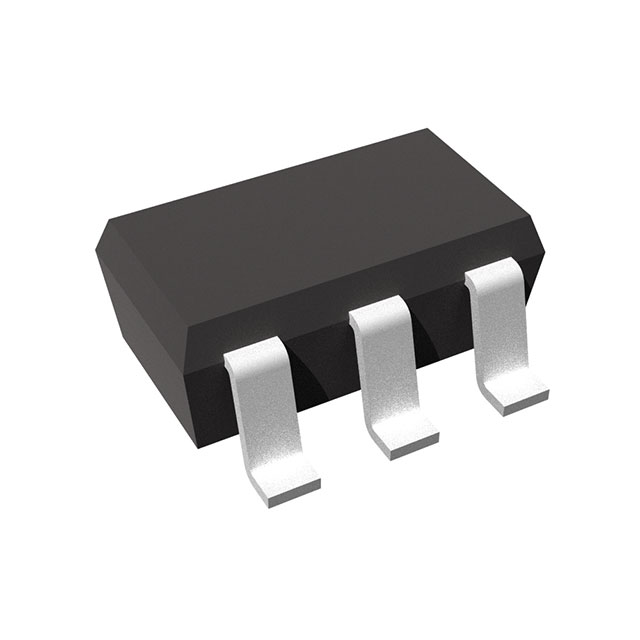

• Package / Case SOT-23-5 Thin, TSOT-23-5
• Mounting Type Surface Mount
• Logic Type OR Gate
• Operating Temperature -55°C ~ 125°C
• Voltage - Supply 2V ~ 6V
• Current - Output High, Low 2.6mA, 2.6mA
• Number of Inputs 2
• Supplier Device Package 5-TSOP
• Input Logic Level - High 1.5V ~ 4.2V
• Input Logic Level - Low 0.5V ~ 1.8V
• Max Propagation Delay @ V, Max CL 17ns @ 6V, 50pF
• Number of Circuits 1
• Current - Quiescent (Max) 1 µA
