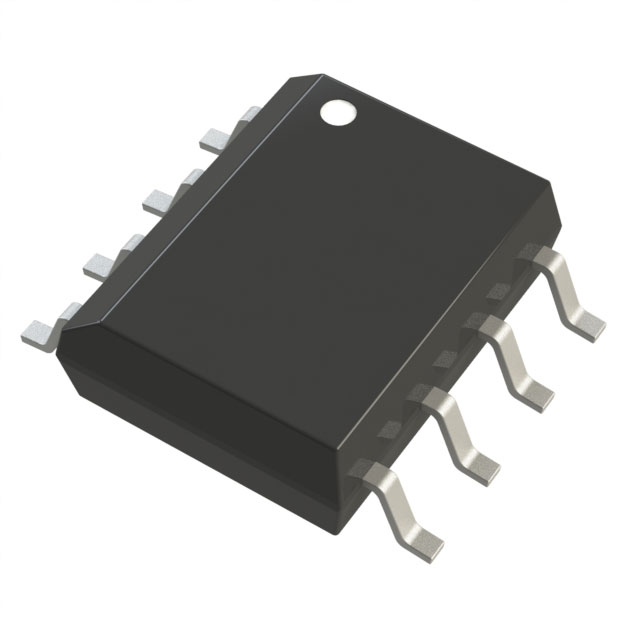

- Product Model MC34152DG
- Brand Sanyo Semiconductor/onsemi
- RoHS Yes
- Description IC GATE DRVR LOW-SIDE 8SOIC
- Classification Gate Drivers
-
PDF
Inventory:2772
Technical Details
- Package / Case 8-SOIC (0.154", 3.90mm Width)
- Mounting Type Surface Mount
- Operating Temperature 0°C ~ 150°C (TJ)
- Voltage - Supply 6.1V ~ 18V
- Input Type Non-Inverting
- Supplier Device Package 8-SOIC
- Rise / Fall Time (Typ) 36ns, 32ns
- Channel Type Independent
- Driven Configuration Low-Side
- Number of Drivers 2
- Gate Type N-Channel MOSFET
- Logic Voltage - VIL, VIH 0.8V, 2.6V
- Current - Peak Output (Source, Sink) 1.5A, 1.5A
- DigiKey Programmable Not Verified
