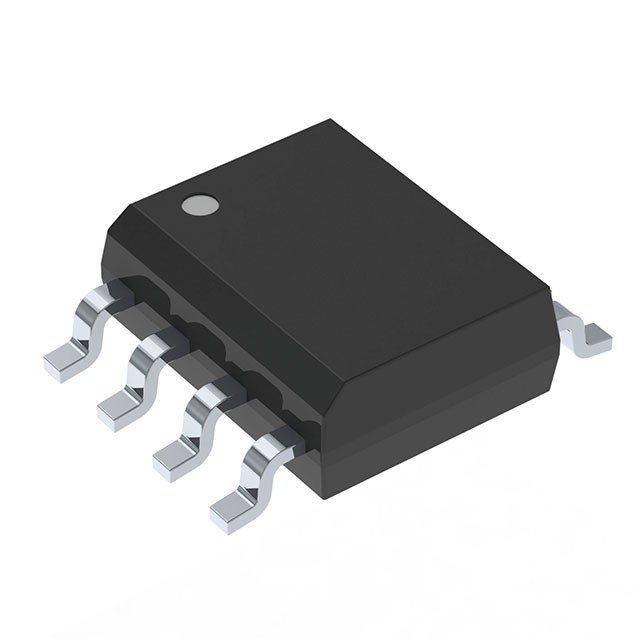

- Product Model 2ED2304S06FXUMA1
- Brand IR (Infineon Technologies)
- RoHS Yes
- Description IC GATE DRVR LEV SHIFT JUNCTION
- Classification Gate Drivers
-
PDF
Technical Details
- Package / Case 8-SOIC (0.154", 3.90mm Width)
- Mounting Type Surface Mount
- Operating Temperature -40°C ~ 125°C (TA)
- Voltage - Supply 10V ~ 17.5V
- Input Type CMOS
- High Side Voltage - Max (Bootstrap) 650 V
- Supplier Device Package PG-DSO-8-910
- Rise / Fall Time (Typ) 48ns, 24ns
- Channel Type Synchronous
- Driven Configuration Half-Bridge
- Number of Drivers 2
- Gate Type IGBT, N-Channel MOSFET
- Logic Voltage - VIL, VIH 1.1V, 1.7V
- Current - Peak Output (Source, Sink) 360mA, 700mA
- DigiKey Programmable Not Verified
