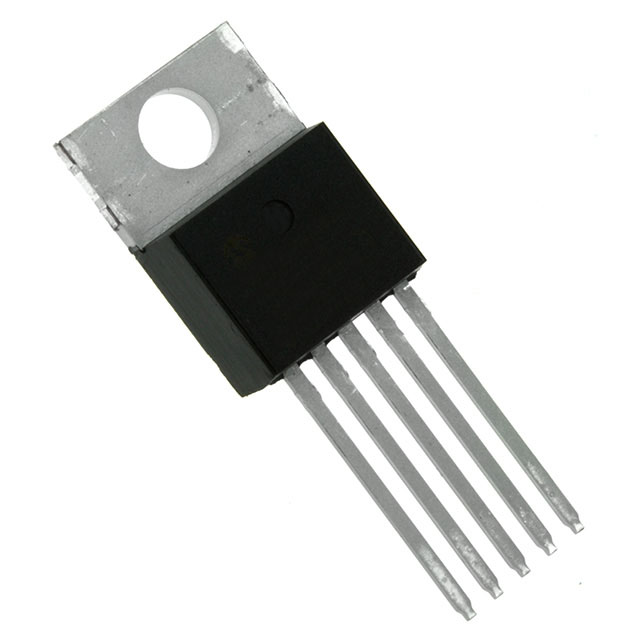

- Product Model TC4422AVAT
- Brand Roving Networks (Microchip Technology)
- RoHS Yes
- Description IC GATE DRVR LOW-SIDE TO220-5
- Classification Gate Drivers
-
PDF
Inventory:1849
Technical Details
- Package / Case TO-220-5
- Mounting Type Through Hole
- Operating Temperature -40°C ~ 150°C (TJ)
- Voltage - Supply 4.5V ~ 18V
- Input Type Non-Inverting
- Supplier Device Package TO-220-5
- Rise / Fall Time (Typ) 38ns, 33ns
- Channel Type Single
- Driven Configuration Low-Side
- Number of Drivers 1
- Gate Type IGBT, N-Channel, P-Channel MOSFET
- Logic Voltage - VIL, VIH 0.8V, 2.4V
- Current - Peak Output (Source, Sink) 10A, 10A
- DigiKey Programmable Not Verified
