- Product Model NCP302045MNTWG
- Brand Sanyo Semiconductor/onsemi
- RoHS Yes
- Description IC PWR DRIVER P-CHAN 2:1 31PQFN
- Classification Full Half-Bridge (H Bridge) Drivers
-
PDF
Technical Details
- Features Bootstrap Circuit

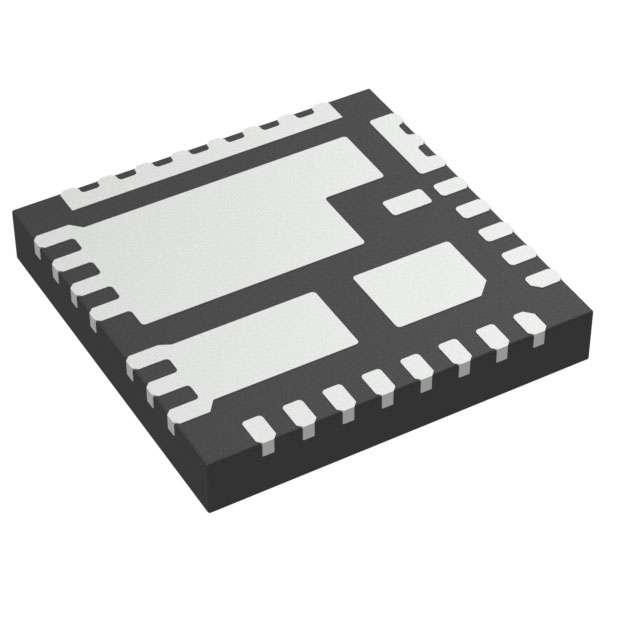

- Package / Case 31-PowerWFQFN
- Mounting Type Surface Mount
- Interface Logic, PWM
- Operating Temperature -40°C ~ 125°C (TA)
- Output Configuration Half Bridge
- Voltage - Supply 4.5V ~ 5.5V
- Applications Synchronous Buck Converters
- Current - Output / Channel 45A
- Current - Peak Output 75A
- Technology MOSFET (Metal Oxide)
- Voltage - Load 4.5V ~ 20V
- Supplier Device Package 31-PQFN (5x5)
- Fault Protection Over Temperature, UVLO
- Load Type Inductive, Capacitive, Resistive
