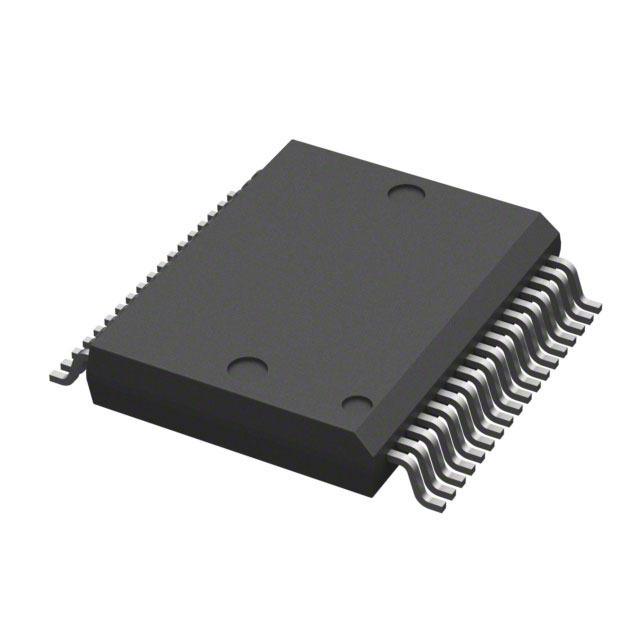

- Product Model VNH9013YTR
- Brand STMicroelectronics
- RoHS Yes
- Description IC HALF BRIDGE DRVR 40A 36PWRSSO
- Classification Full Half-Bridge (H Bridge) Drivers
-
PDF
Technical Details
- Package / Case 36-PowerBFSOP (0.295", 7.50mm Width)
- Mounting Type Surface Mount
- Operating Temperature 175°C (TJ)
- Output Configuration Half Bridge (2)
- Voltage - Supply 80V
- Rds On (Typ) 7.8mOhm LS, 6mOhm HS
- Applications DC Motors, General Purpose
- Current - Output / Channel 40A
- Technology MOSFET (Metal Oxide)
- Voltage - Load 80V
- Supplier Device Package PowerSSO-36 TP
- Load Type Inductive, Resistive
- Grade Automotive
- Qualification AEC-Q100
