- Product Model DAC312HSZ
- Brand Linear Technology (Analog Devices, Inc.)
- RoHS Yes
- Description IC DAC 12BIT A-OUT 20SOIC
- Classification Digital to Analog Converters (DAC)
-
PDF
Technical Details

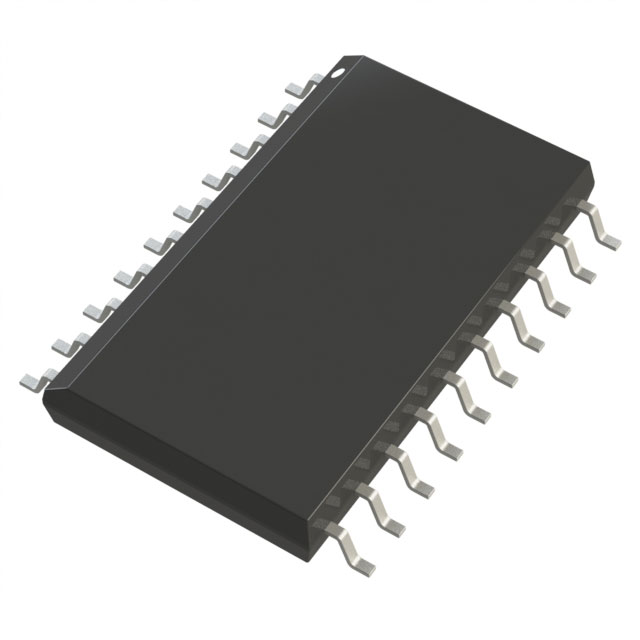

- Package / Case 20-SOIC (0.295", 7.50mm Width)
- Output Type Current - Unbuffered
- Mounting Type Surface Mount
- Number of Bits 12
- Data Interface Parallel
- Reference Type External
- Operating Temperature -40°C ~ 85°C
- Voltage - Supply, Analog 4.5V ~ 18V, -10.8V ~ 18V
- Voltage - Supply, Digital 20V ~ 36V
- Settling Time 500ns
- Supplier Device Package 20-SOIC
- Architecture R-2R
- Number of D/A Converters 1
- INL/DNL (LSB) -, ±1 (Max)
- Differential Output Yes
- DigiKey Programmable Not Verified
