- Product Model ADG201AKNZ
- Brand Linear Technology (Analog Devices, Inc.)
- RoHS Yes
- Description IC SWITCH SPST-NCX4 90OHM 16DIP
- Classification Analog Switches, Multiplexers, Demultiplexers
-
PDF
Technical Details

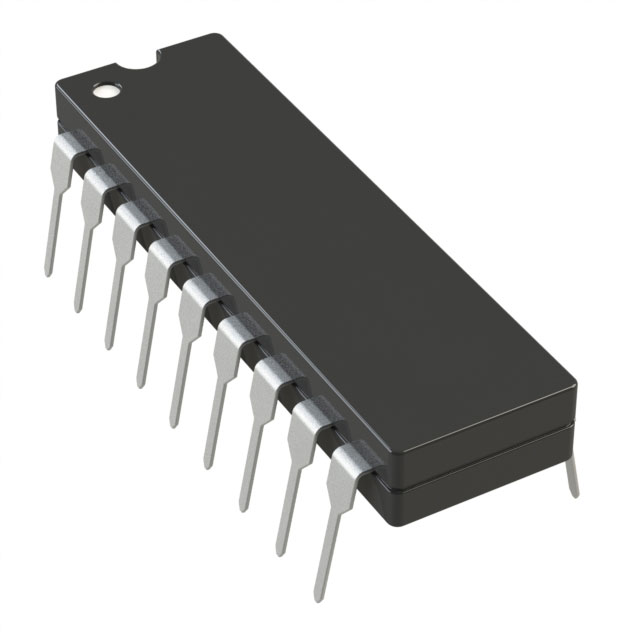

- Package / Case 16-DIP (0.300", 7.62mm)
- Mounting Type Through Hole
- Operating Temperature -40°C ~ 85°C (TA)
- On-State Resistance (Max) 90Ohm
- Supplier Device Package 16-PDIP
- Voltage - Supply, Single (V+) 10V ~ 15V
- Voltage - Supply, Dual (V±) ±10V ~ 15V
- Charge Injection 20pC
- Crosstalk -80dB @ 100kHz
- Switch Circuit SPST - NC
- Multiplexer/Demultiplexer Circuit 1:1
- Channel-to-Channel Matching (ΔRon) 4.5Ohm
- Switch Time (Ton, Toff) (Max) 300ns, 250ns
- Channel Capacitance (CS(off), CD(off)) 5pF
- Current - Leakage (IS(off)) (Max) 2nA
- Number of Circuits 4
