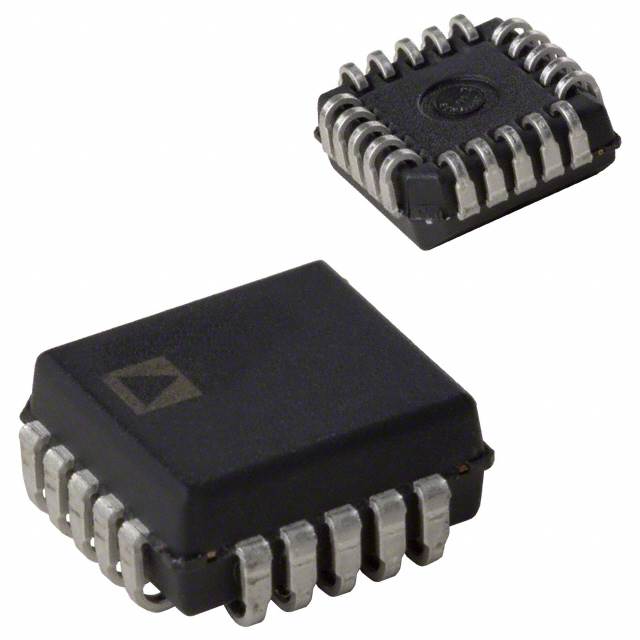

- Product Model AD7226KPZ
- Brand Linear Technology (Analog Devices, Inc.)
- RoHS Yes
- Description IC DAC 8BIT V-OUT 20PLCC
- Classification Digital to Analog Converters (DAC)
-
PDF
Technical Details
- Package / Case 20-LCC (J-Lead)
- Output Type Voltage - Buffered
- Mounting Type Surface Mount
- Number of Bits 8
- Data Interface Parallel
- Reference Type External
- Operating Temperature -40°C ~ 85°C
- Voltage - Supply, Analog 11.4V ~ 16.5V, -5V
- Voltage - Supply, Digital 14.25V ~ 15.75V
- Settling Time 4µs
- Supplier Device Package 20-PLCC (9x9)
- Architecture R-2R
- Number of D/A Converters 4
- INL/DNL (LSB) ±0.5 (Max), ±1 (Max)
- Differential Output No
- DigiKey Programmable Not Verified
