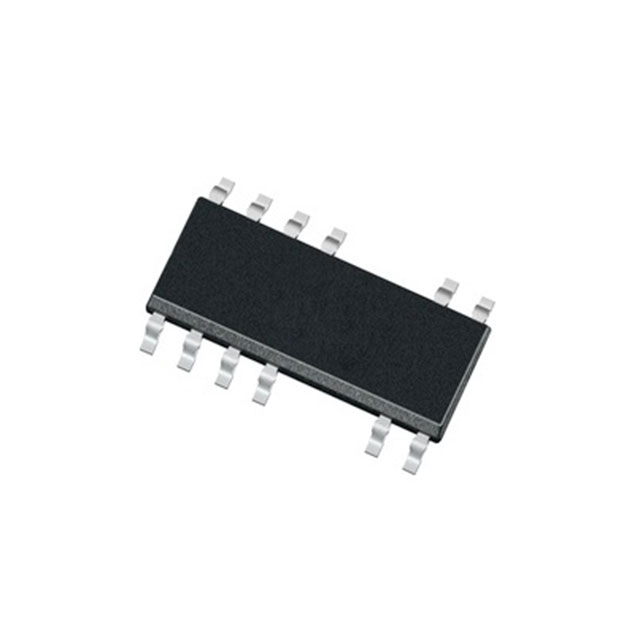

- Product Model ICE5GR1680AGXUMA1
- Brand IR (Infineon Technologies)
- RoHS Yes
- Description IC OFFLINE SWITCH FLYBACK 12DSO
- Classification AC DC Converters, Offline Switches
-
PDF
Technical Details
- Package / Case 16-SOIC (0.154", 3.90mm Width), 12 Leads
- Mounting Type Surface Mount
- Operating Temperature -40°C ~ 150°C (TJ)
- Duty Cycle 75%
- Frequency - Switching 125kHz
- Internal Switch(s) Yes
- Voltage - Breakdown 800V
- Output Isolation Non-Isolated
- Topology Flyback
- Voltage - Supply (Vcc/Vdd) 10V ~ 25.5V
- Supplier Device Package PG-DSO-12-21
- Fault Protection Current Limiting, Open Loop, Over Load, Over Temperature, Over Voltage
- Control Features EN, Soft Start, Sync
- Power (Watts) 27 W
Related Products
IC OFFLINE SWITCH FLYBACK 12DSO
Inventory: 8

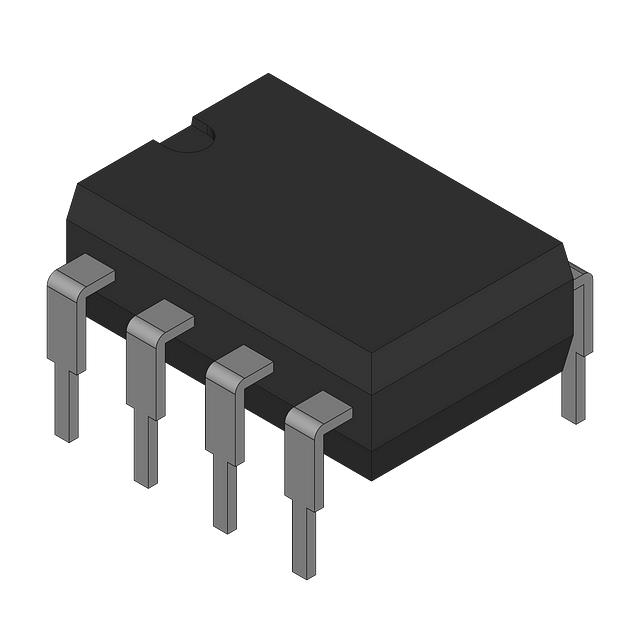

IC OFFLINE SWITCH FLYBACK 7DIP
